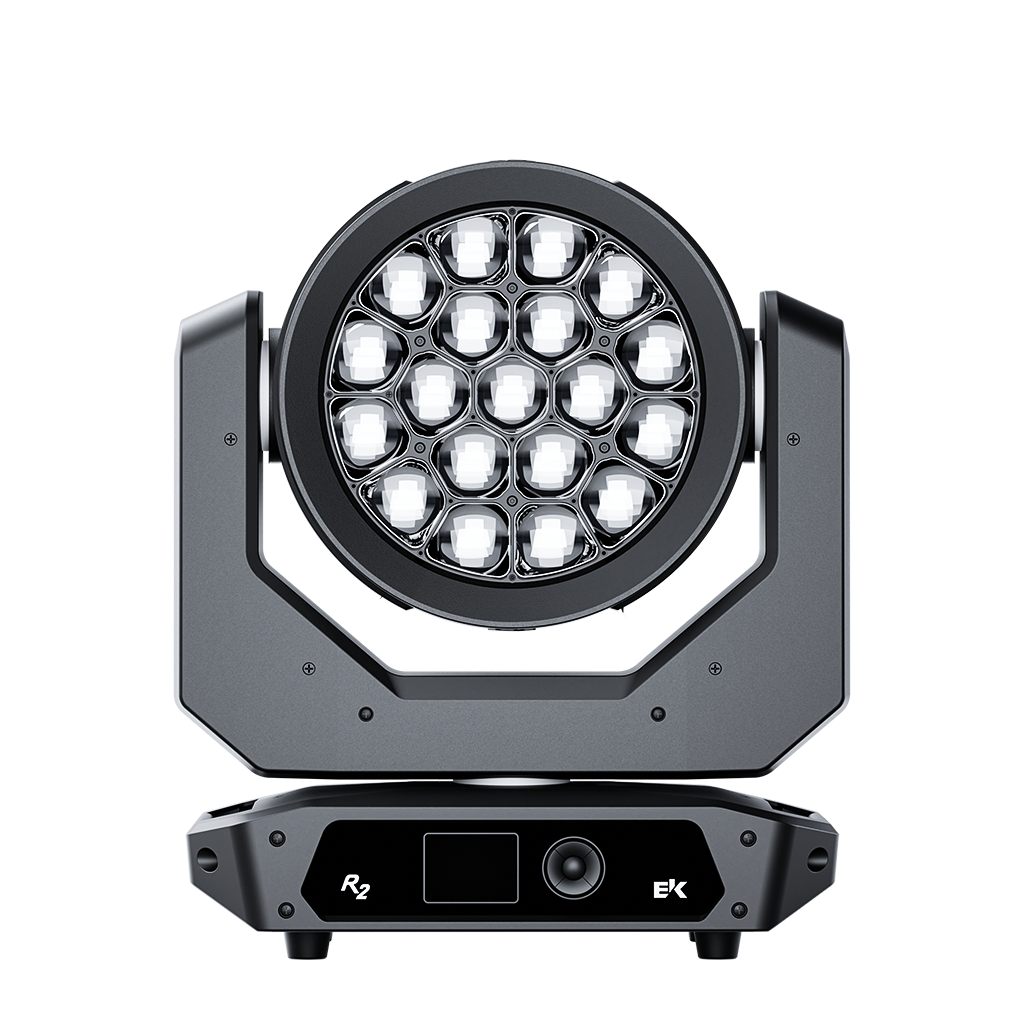

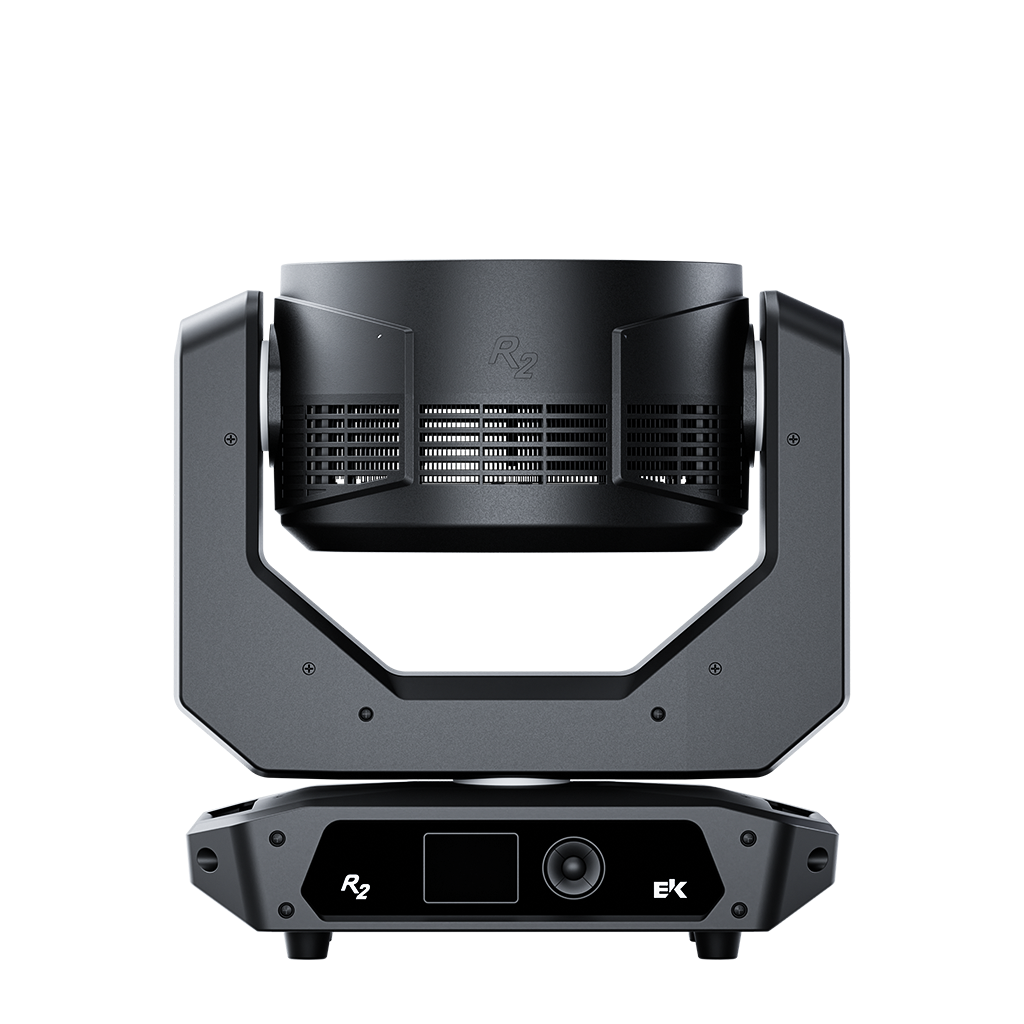

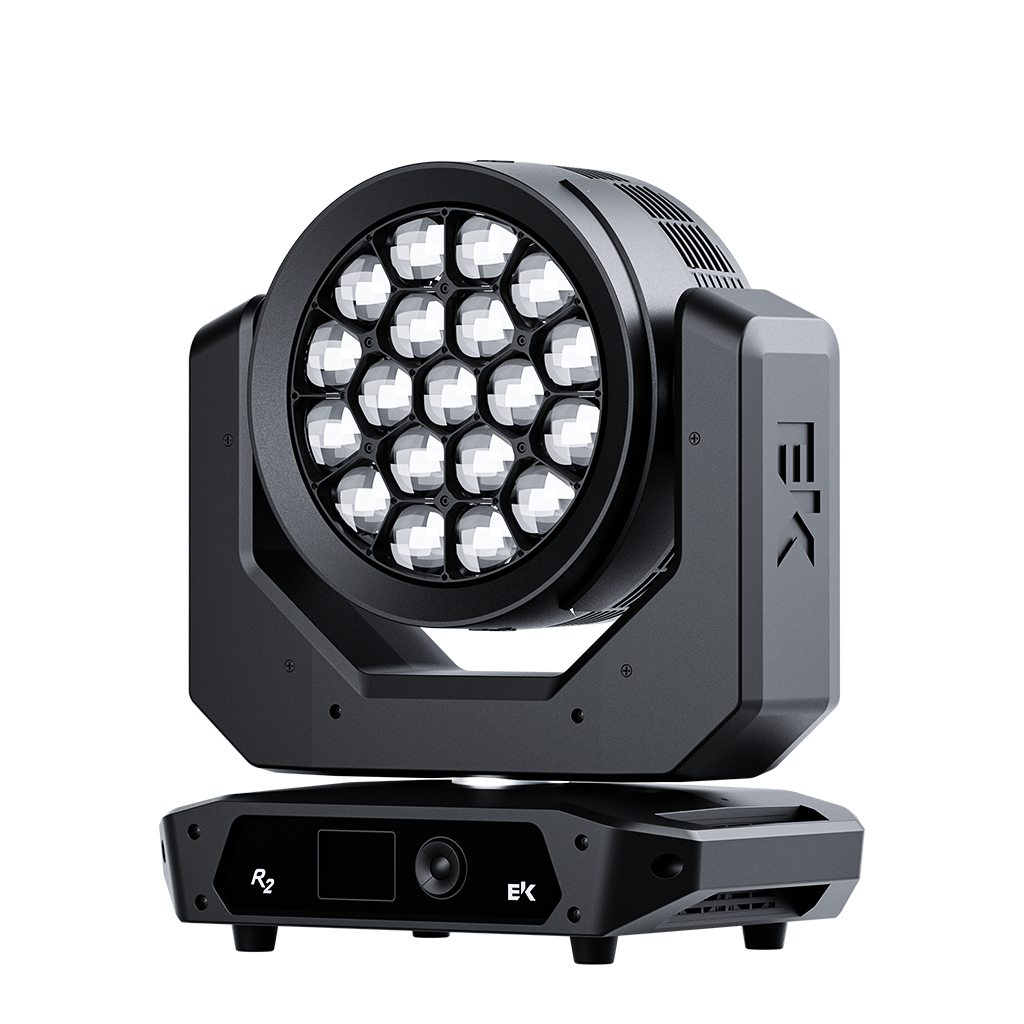

R2 Beam Wash
Say hello to flicker-free definition
Versatile for every stage
The R2 beam wash delivers outstanding performance with 19 RGBW LEDs, producing 11,000 lumens at 90+ CRI. Its versatile 4-60° zoom range adapts from intimate venues to grand stages. With adjustable PWM frequency, it ensures flicker-free video recording, making it the professional lighting standard for any production.
760W RGBW LED
LIGHT SOURCE
11,000 Lm
LUMENS
2700K – 8000K
COLOR TEMPERATURE
4°- 60°
BEAM MODE
20KG
WEIGHT
419 x 277 x 510mm
DIMENSION
Outstanding color rendition
- 760W RGBW LEDs
- Up to 11000 lumen fixture output
- White color temperature preset from 2700K~8000K
- Outstanding color rendition, Ra≥90 R9≥90

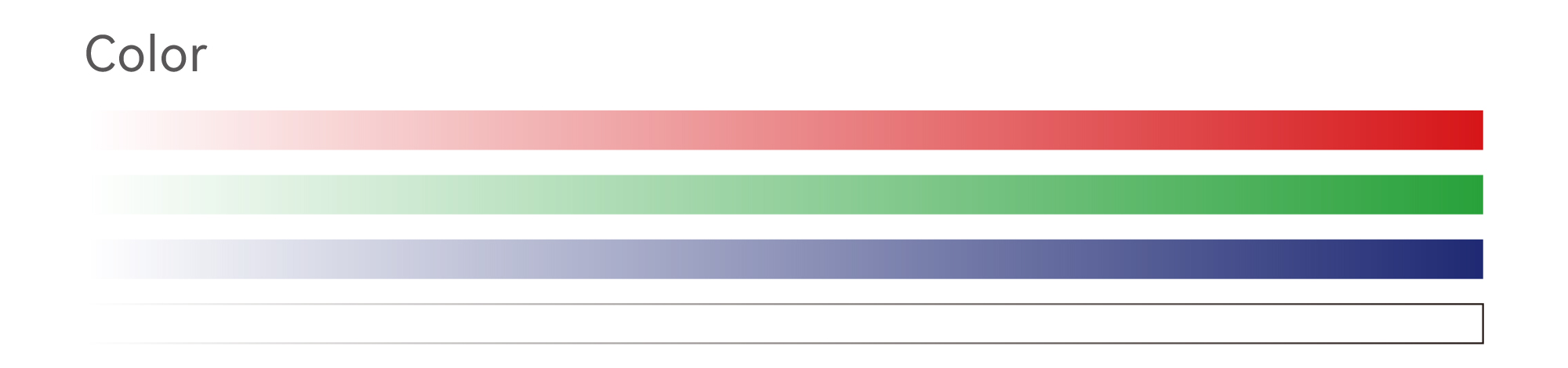

- RGBW color mixing with hue / saturation / tint adjustment (green – magenta)
- Flawless 16-bit dimming
Features
Master every angle
4° – 60° wide ranging motorized zoom
540°/270° motorised pan/tilt movement
Quiet operation suitable for studio use
Pixel perfect control
- Individual LED control to produce rich dynamic effects
- Independent channel for CT correction
- Selectable PWM frequency for flicker-free video with any camera
- DMX and RDM control
Technical specs
Photometrics
- Light Source
760W RGBW LEDs
- Output

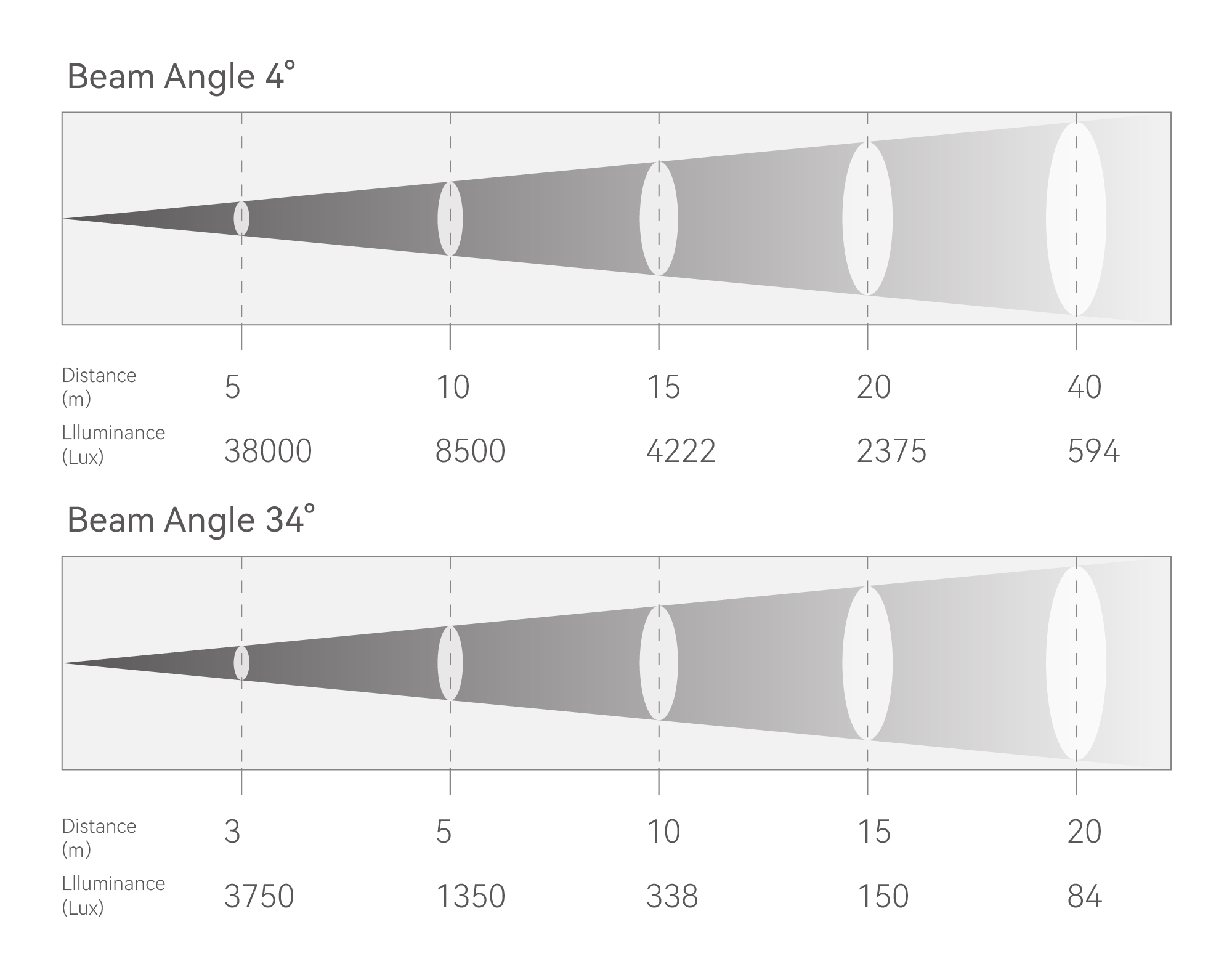

38,000 Lux @ 5m
- CRI
RA≥90
R9≥90
- Color Temperature
2700K – 8000K
- LED Life
3,000 hours
KEY FEATURES
- PAN
540° (16 bit resolution)
- TILT
270° (16 bit resolution)
- Color System
RGBW
- Pixel Matrix
NA
- Zoom
4°- 60°
- Strobe
0 – 20Hz
- Dimming
0 – 100% variable with 4 dimming curves
- Gobo System
1 fixed gobo wheel (18 + open)
1 rotating gobo wheel (8 + open)
- Animation
1 animation wheel
- Framing System
Single blade ±35°, rotatable 180°
- Iris
NA
- Frost
Frost glass
- Prism
Bi-directional, combinable, 8-facet + 4-facet prism
CONTROL
- Protocol
DMX 512 /RDM
- Data Connections
3pin(or 5pin) XLR In/Out for DMX
- DMX Channel
16CH/43CH/86CH
- Display
2.83 inch TFT display
- Frequency
NA
- Built-in Programs
NA
- Pixel Control
NA
POWER
- Mains
100 – 240V, 50/60 Hz

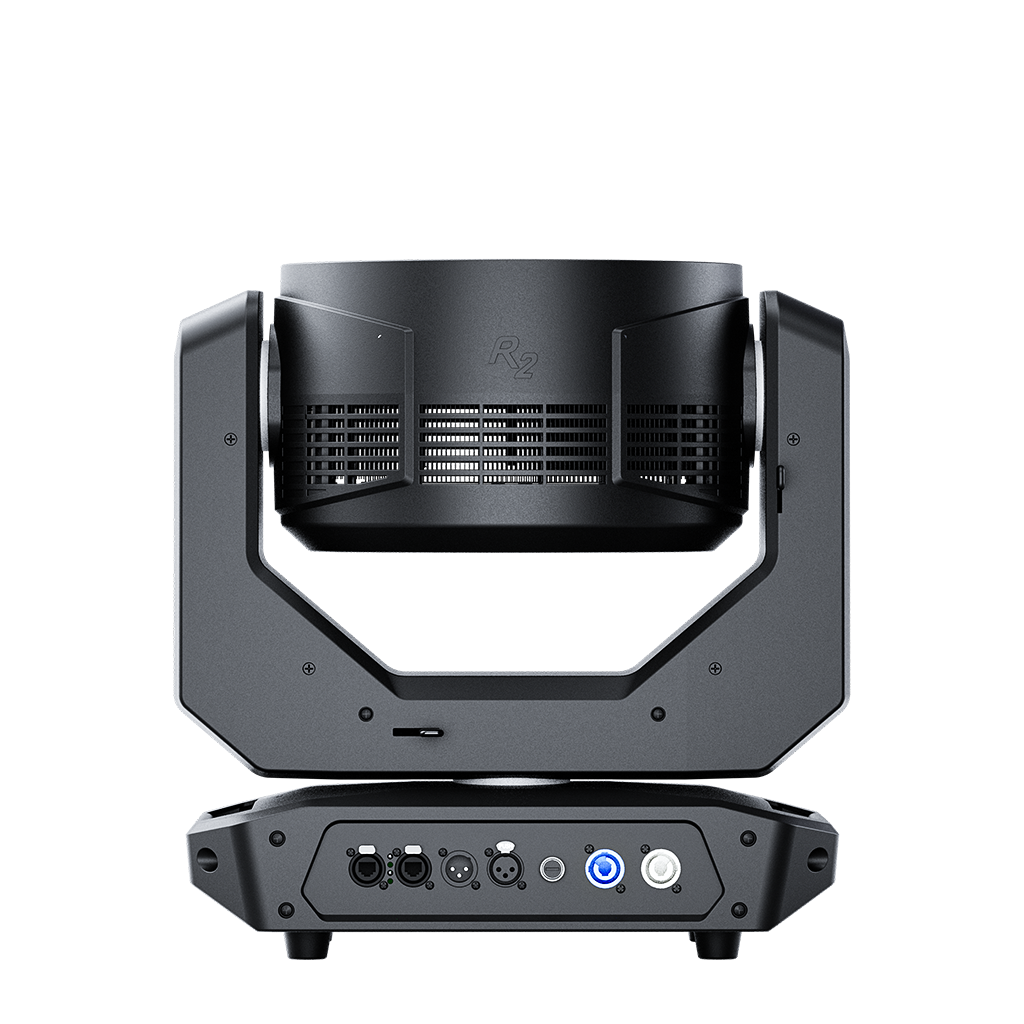

- Power Connections
POWERCON In / Out
- Maximum Power Connections
Linking up to 3pcs @ 230V, 1pc @ 120V
- Data Connections
3pin(or 5pin) XLR In/Out for DMX
- Maximum Data Connections
Linking up to 32pcs
- Consumption
858W@230V, 910W@120V
- Power Factor
0.96 @230V
- Ambient
-10°C – 45°C
PHYSICAL

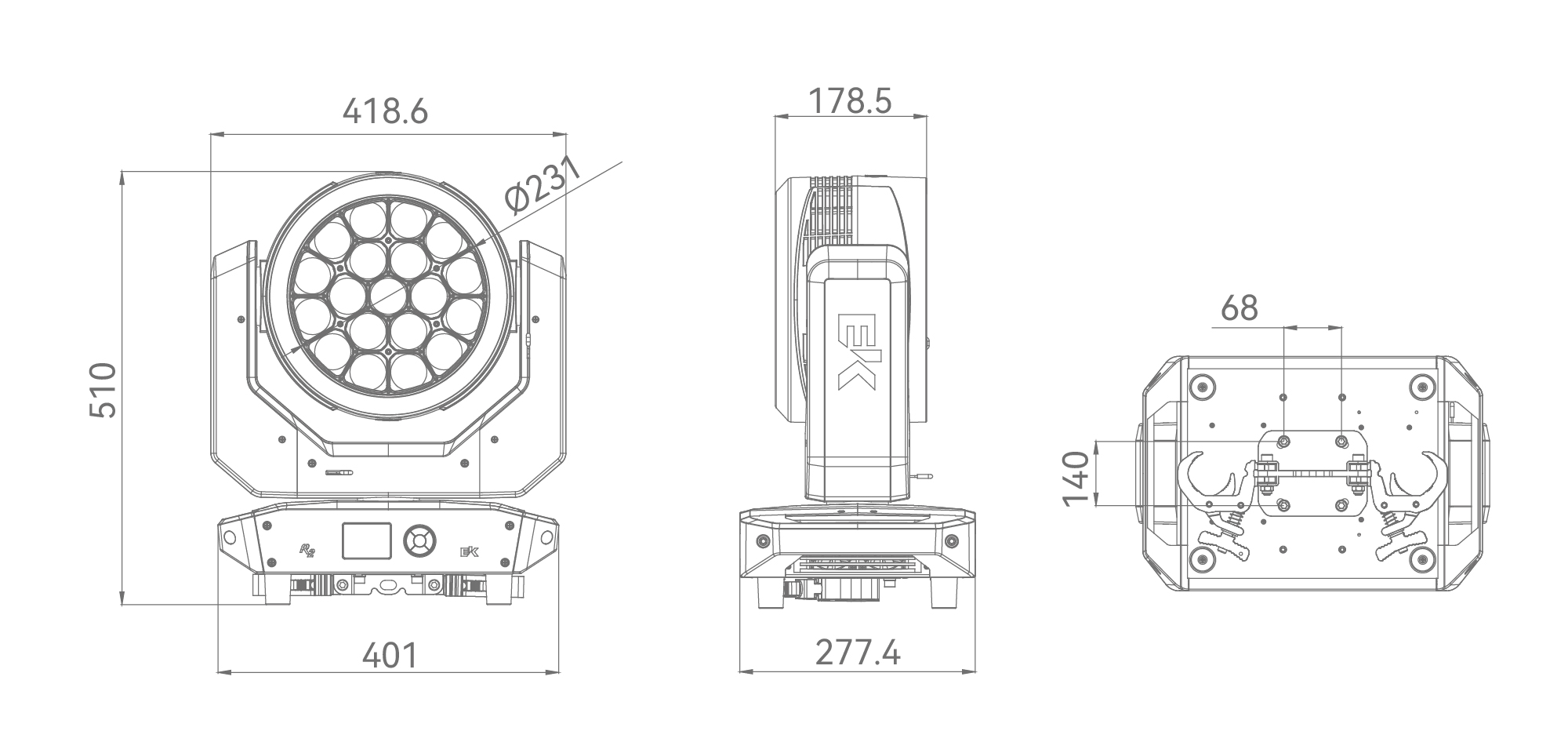

- Dimension
419 x 277 x 510mm
- Weight
20kg
- IP Rating
IP20
- Cooling
Heat pipe cooling system with low noise fan
- Housing
Die-cast magnesium with matte black finish
ACCESSORIES
- Standard

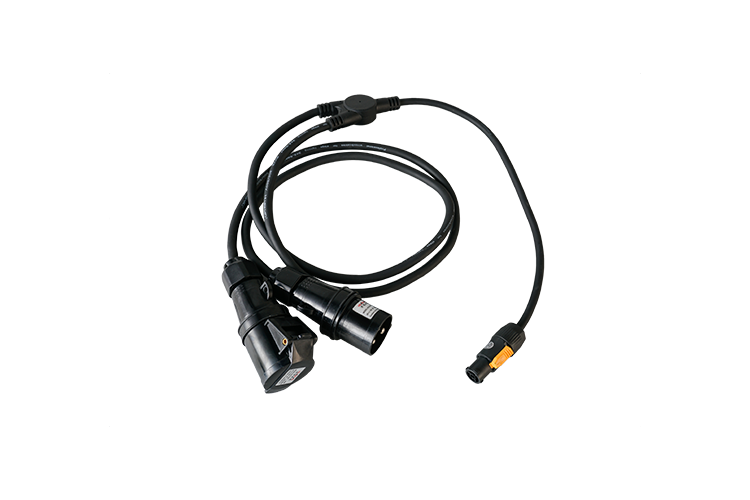

Power Cable
