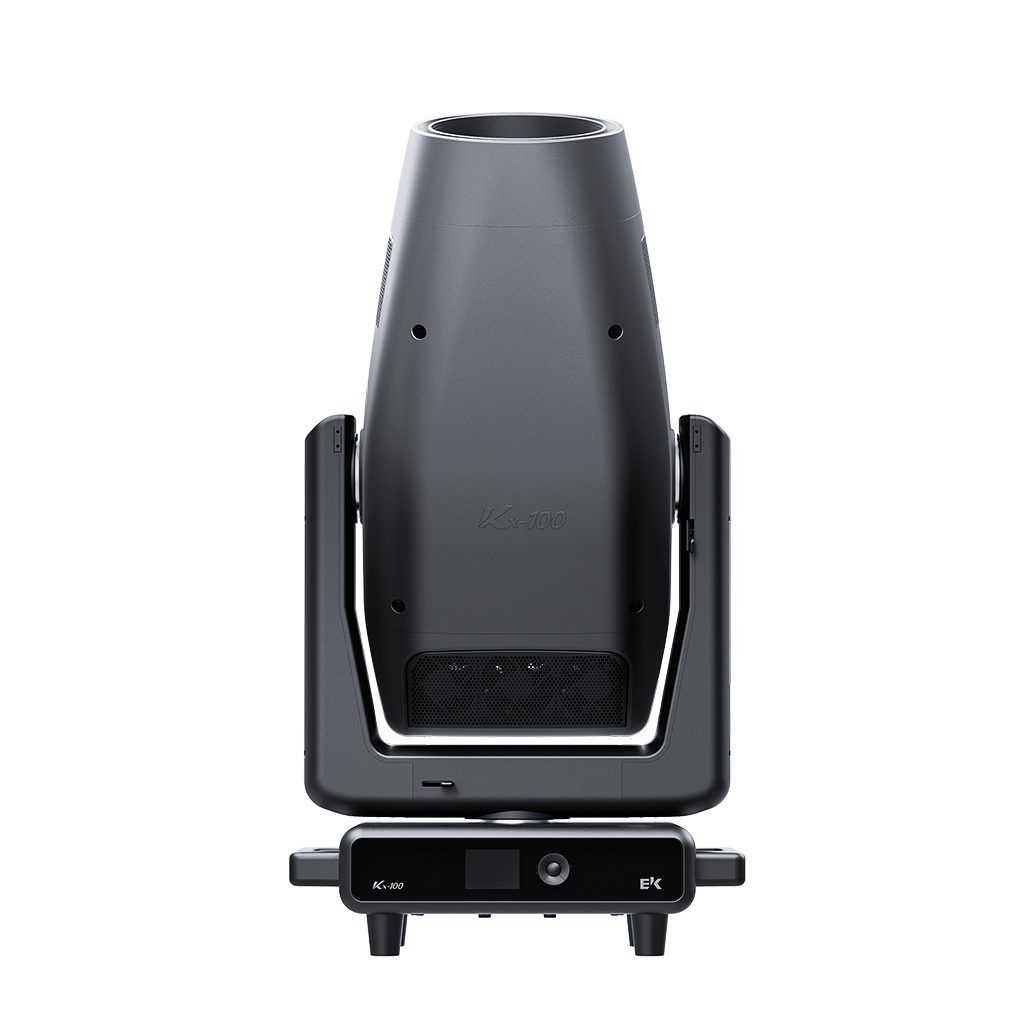

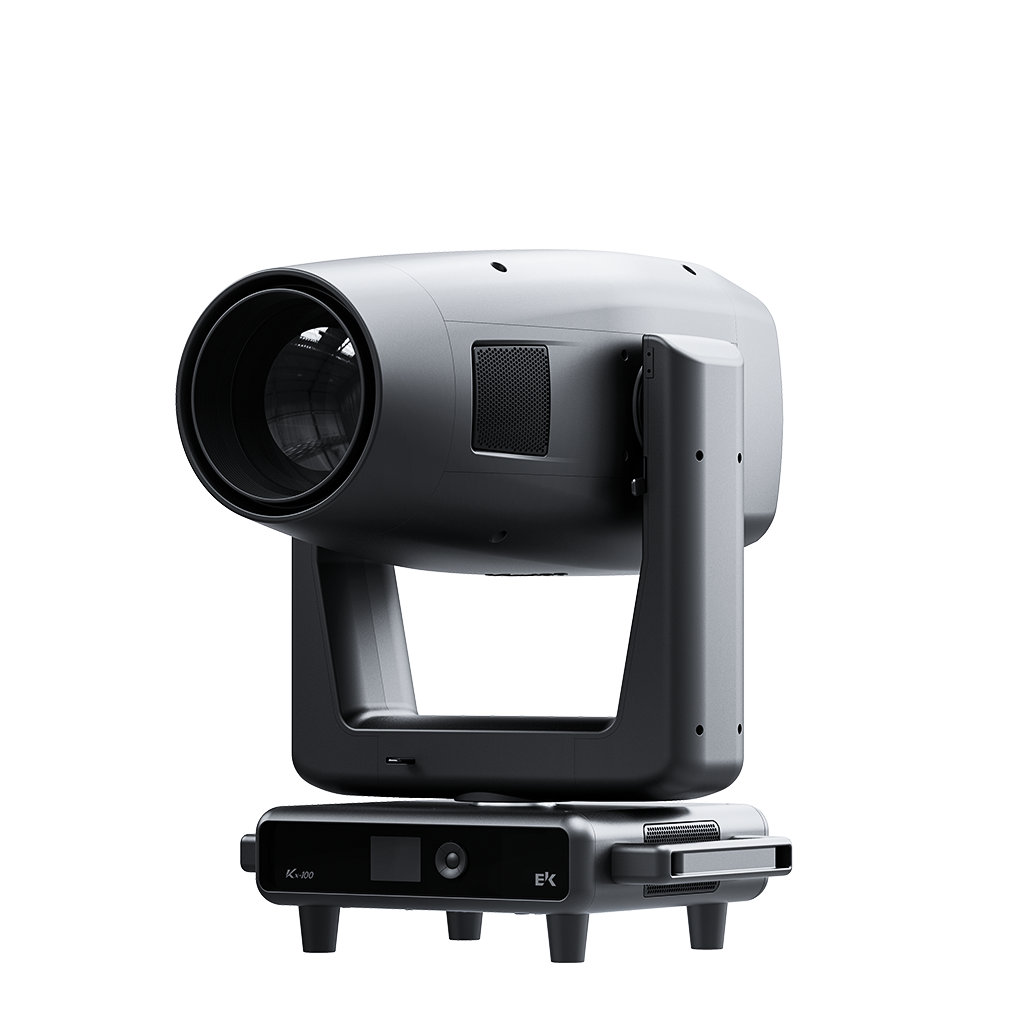

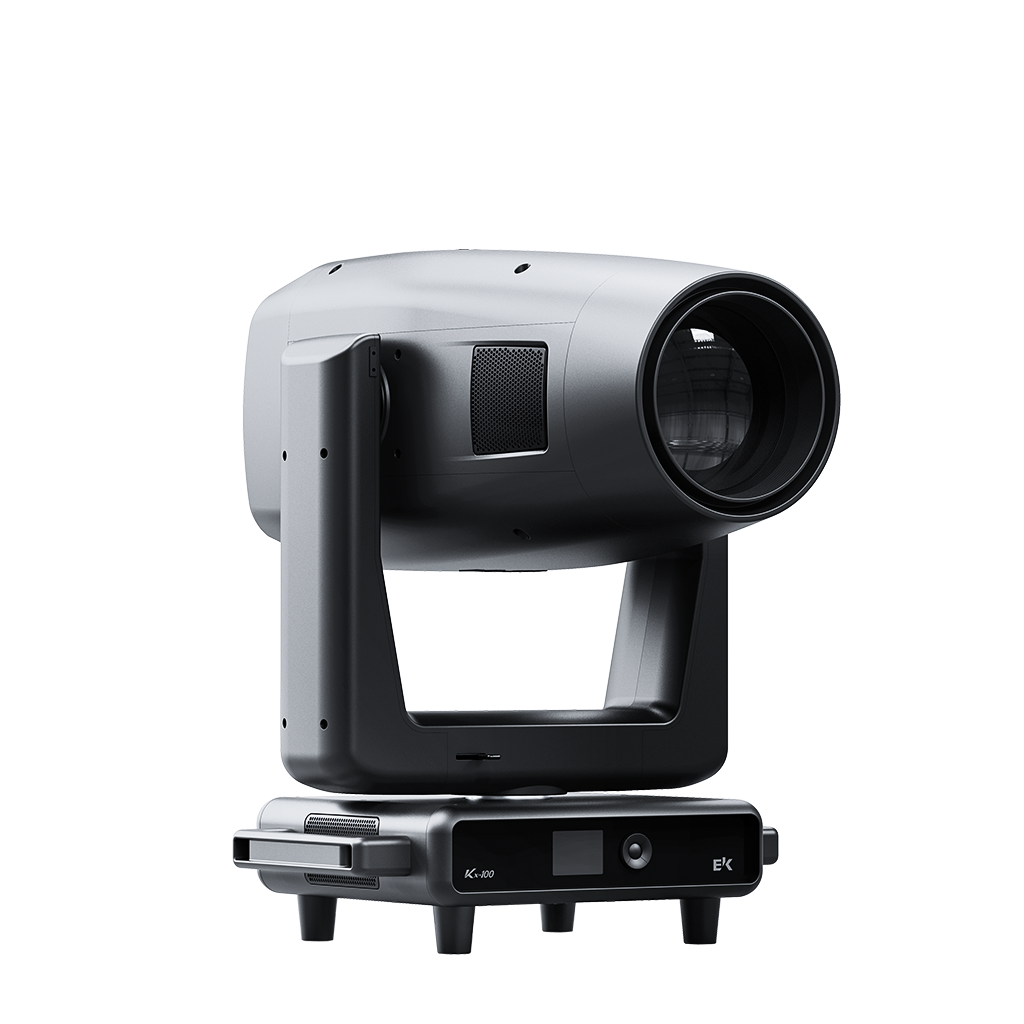

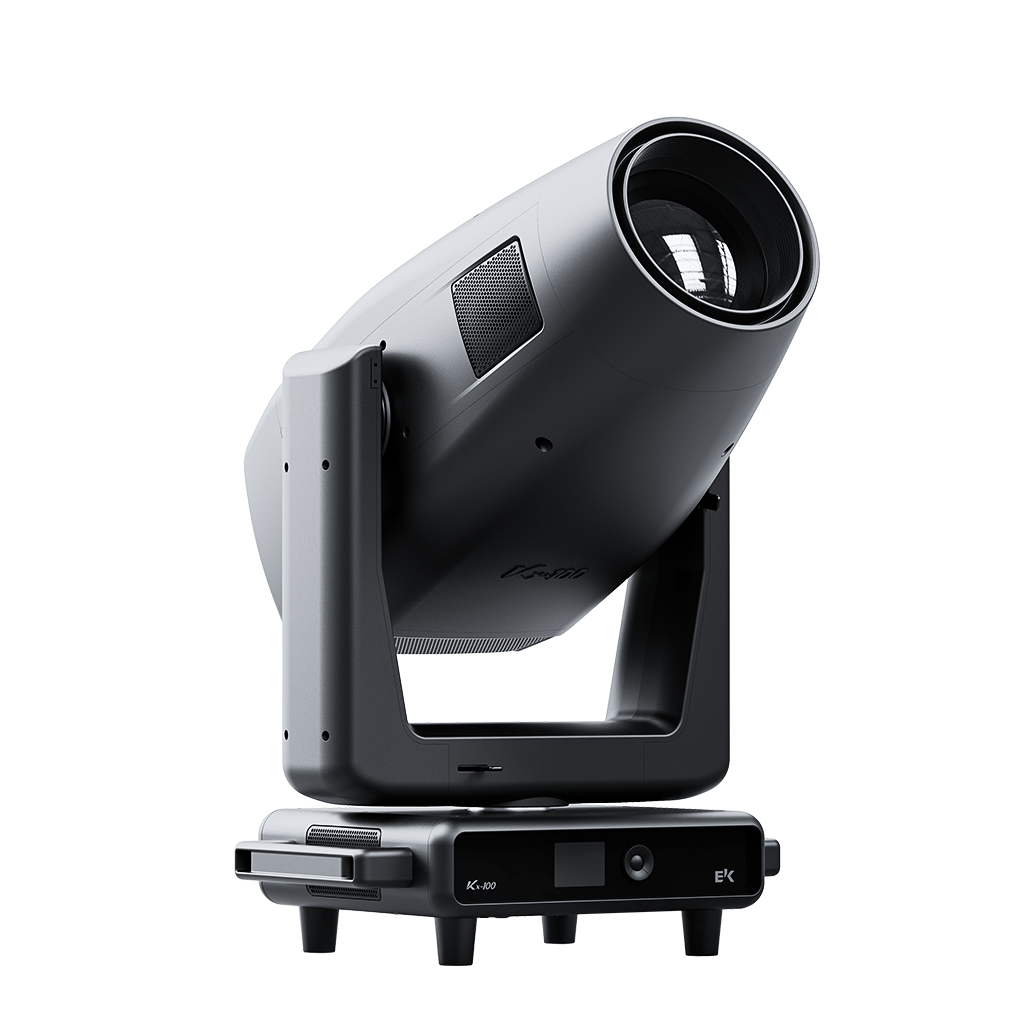

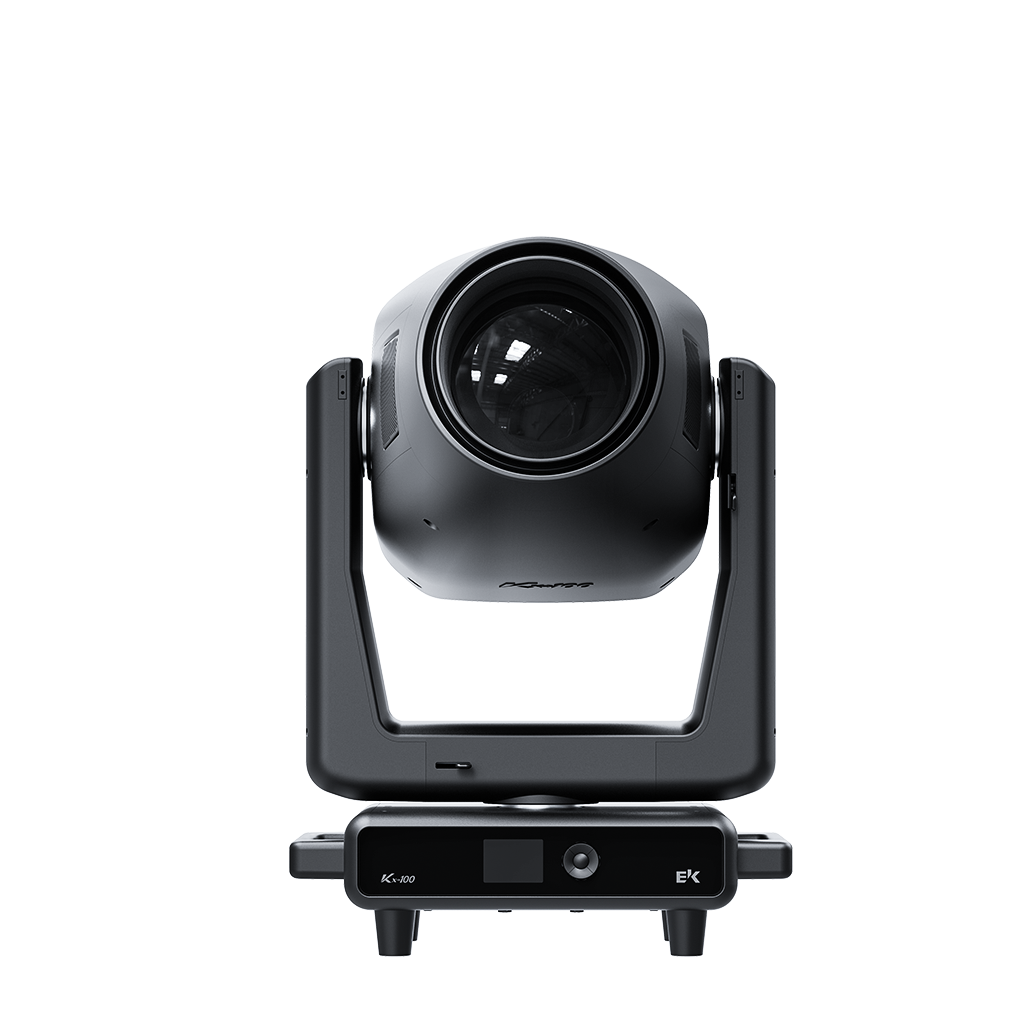

KX->100+
Dare to see different
See color the way its meant to be seen
Nature’s colors, perfected. Built around our revolutionary 1500W EK-patented LED system, the KX->100+ delivers sun-like color rendering (Ra>98, R9>98) with groundbreaking electronic HUE adjustment. For the first time, achieve true-to-life colors without compromising brightness or consistency.
With groundbreaking optics
1500W CW+RGB LED engine
LIGHT SOURCE
30,000
LUMENS
2700K – 6000K
COLOR TEMPERATURE
4.8° – 48°
BEAM ANGLE
47KG
WEIGHT
Impeccable color fidelity
- 1500W LED engine
Up to 30000 lumen output - CW+CMY+color wheel
- Linear CCT from 2700K to 6000K
- Sun-like reproduction: CRI:98, R9:98
- Electronic +/- green~magenta HUE fine tuning
- Electronic CTB fine adjustment
- Razor sharp shutter framing and elegant gobo shaping
- Rotating animation wheel with variable speed
Features
Master every angle
Dual 1° and 5° frost with linear adjustment
10X wide zoom range from 4.8° – 48°
Engineering brilliance
- EK Patented LED board layout design
- DMX 512 and RDM control
Technical specs
Photometrics
- Light Source
1500W CW+RGB LED engine (patented)
- Output
30,000 Lm
- Luminious Flux
NA
- CRI
CRI:98,
R9:98
- Color Temperature
2700K – 6000K
- LED Life
20,000 hours
KEY FEATURES
- PAN
540°
- TILT
270°

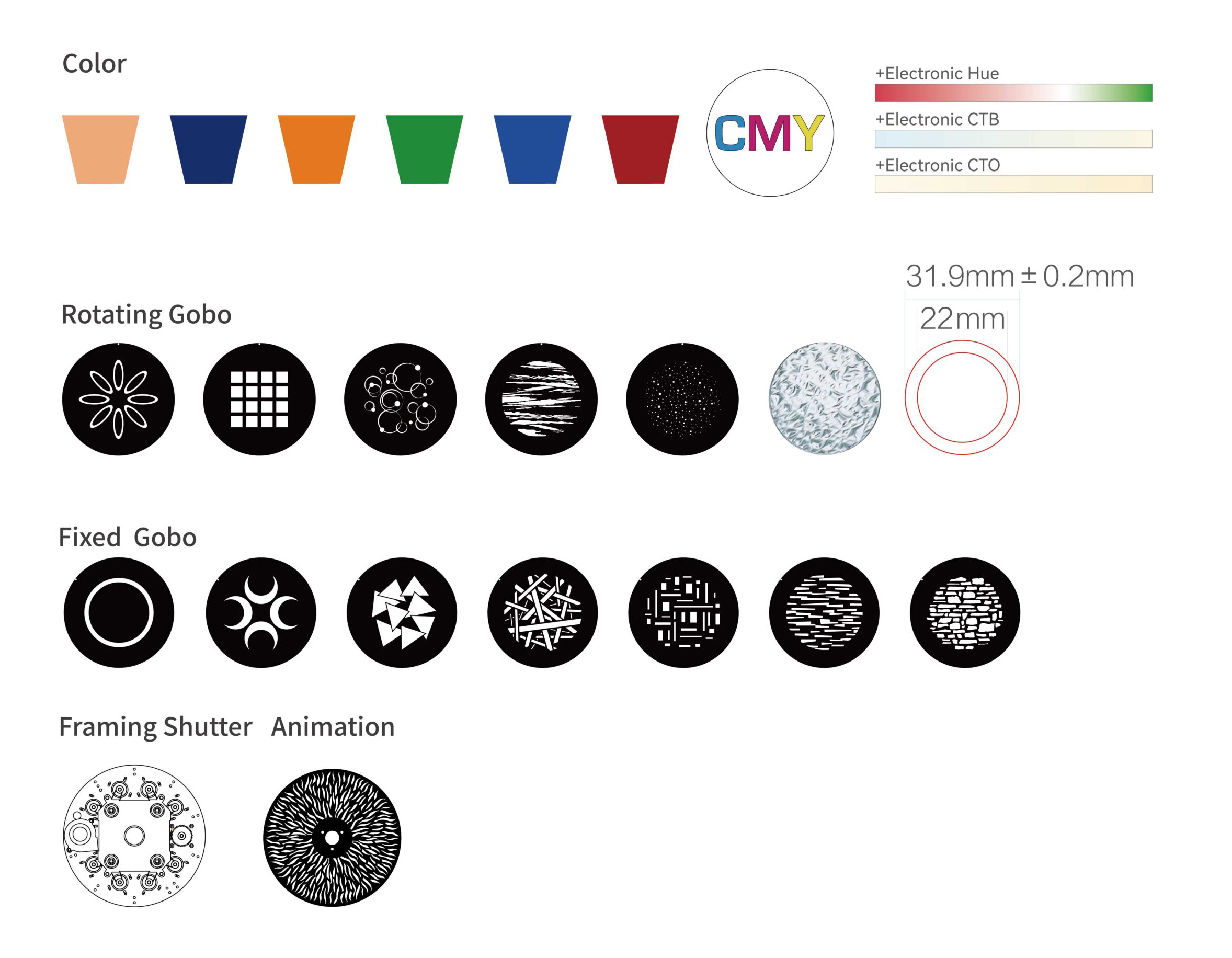

- Color System
CW+CMY+Hue+CTO/CTB+6 filters+open
- Pixel Matrix
NA

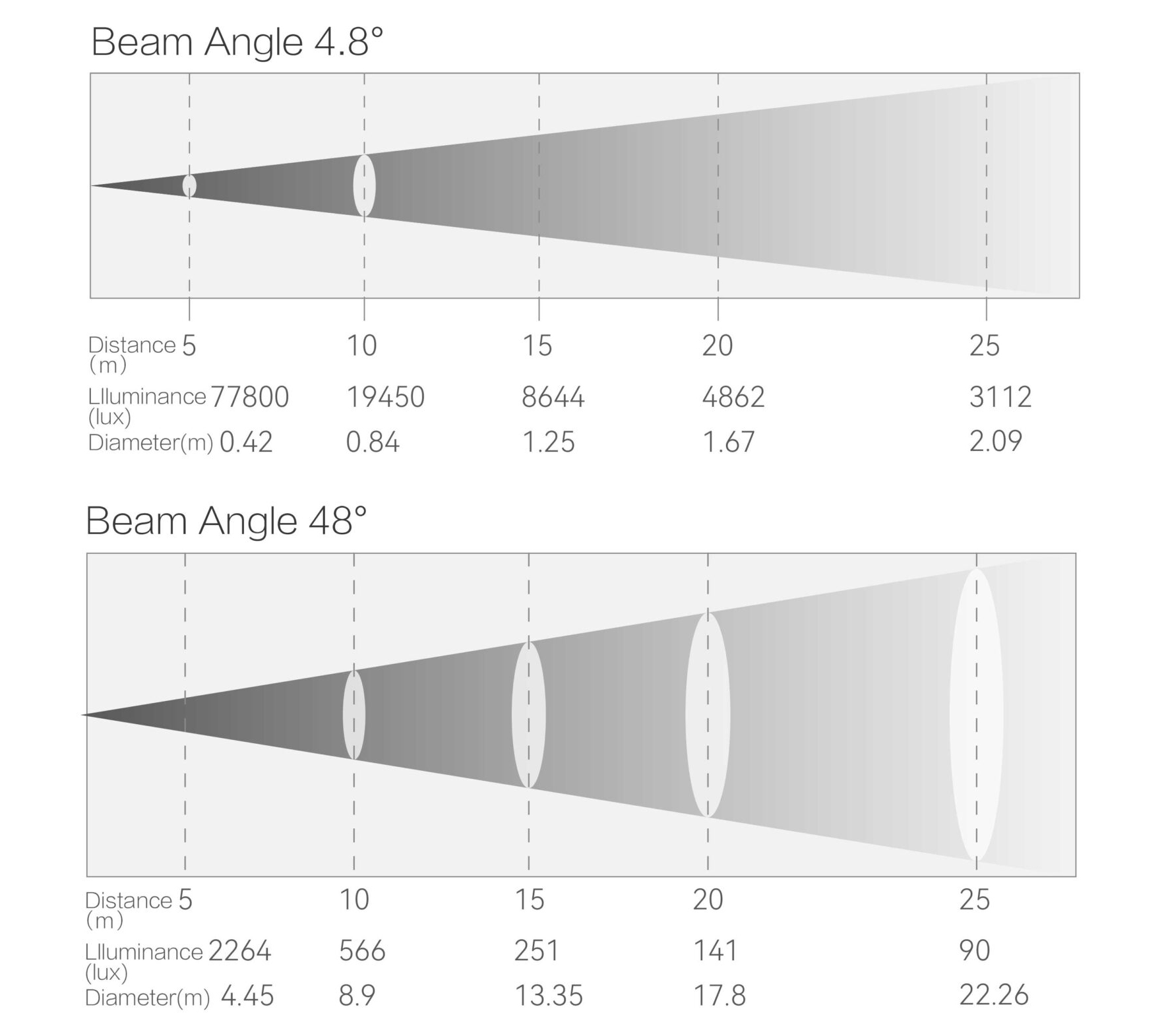

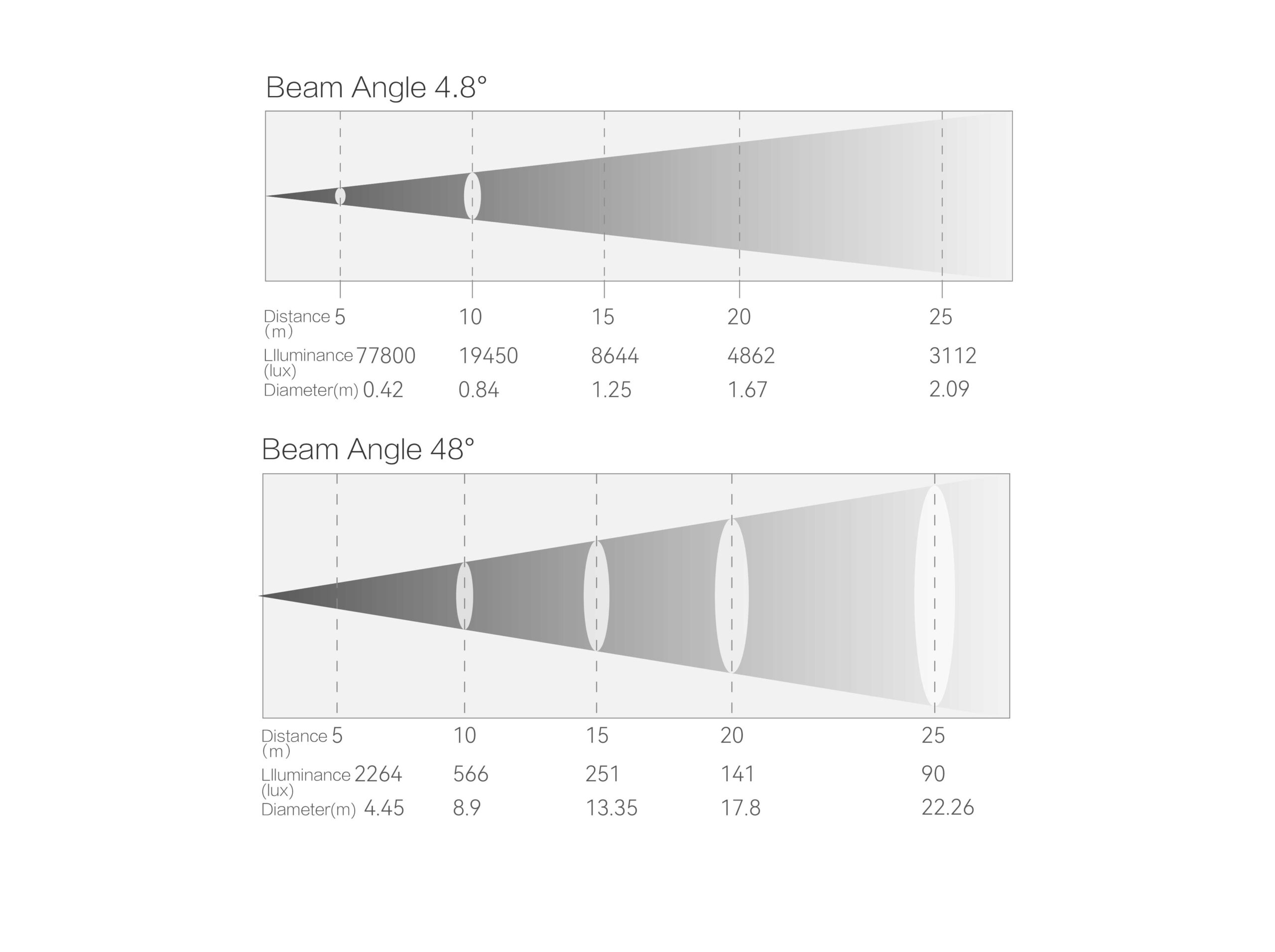

- Zoom
Beam Angle 4.8° – 48°
- Strobe
1 – 30Hz
- Dimming
4 dimming curves (Linear/Square/inverse-
square/S-curve) + 4 dimming modes
- Gobo System
1 rotating gobo wheel (6 + open)
1 fixed gobo wheel (7 + open)
- Animation
Rotating animation wheel with variable speed
- Framing System
±35° each blade individually
controllable, 120° system rotation
- Iris
NA
- Frost
1°/5° 0 – 100% linear adjustable
- Prism
Indexable 4-facet prism with variable speed
CONTROL
- Protocol
DMX512/RDM
- Data Connections
3pin+5pin DMX In/Out
- DMX Channel
34CH/36CH
- Display
2.83 inch TFT display with gravity sensor
- Frequency
NA
- Built-in Programs
NA
- Pixel Control
NA
POWER
- Mains
200 – 240 VAC, 50/60 Hz
- Power Connections
IP PowerCON True One In
- Maximum Power Connections
Linking up to 1pcs only
- Data Connections
3pin+5pin DMX In/Out
- Maximum Data Connections
Linking up to 32pcs
- Consumption
1760W @ 230V
- Power Factor
0.98 @ 230V
- Ambient
-10°C – 45°C
PHYSICAL

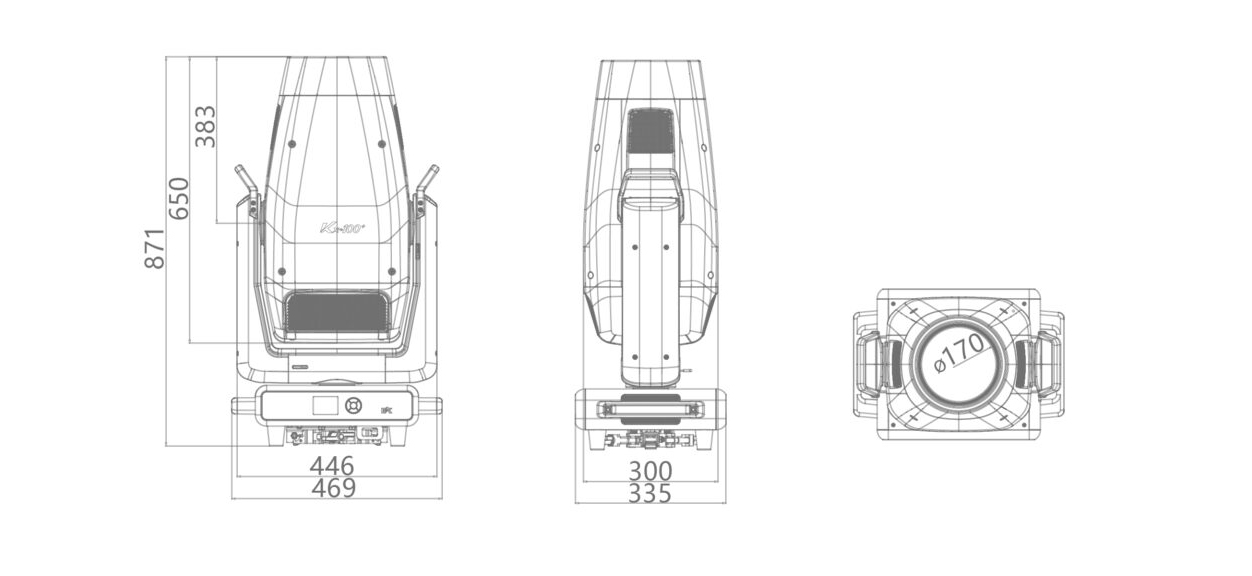

- Dimension
469 x 335 x 871mm
- Weight
47kg
- IP Rating
IP20
- Cooling
Heat pipe + noiseless fan
- Housing
压铸镁，半光细黑砂户外漆
- Installation
NA
