Frame with Precision;
project with Power
The brightest fixture in its class
A compact LED moving profile, the K Smart combines exceptional power with precision, delivering 20,300 lumens from its 600W LED engine. It features razor-sharp framing with perfect distortion control for imaging accuracy. With a comprehensive effects package including CMY color mixing, rotating gobos, animation wheel, and 4-facet prism, it creates rich, dynamic visual displays.
600W 6000K LED engine
LIGHT SOURCE
20,300 Lu
LUMENS
3200K- 6000K
COLOR TEMPERATURE

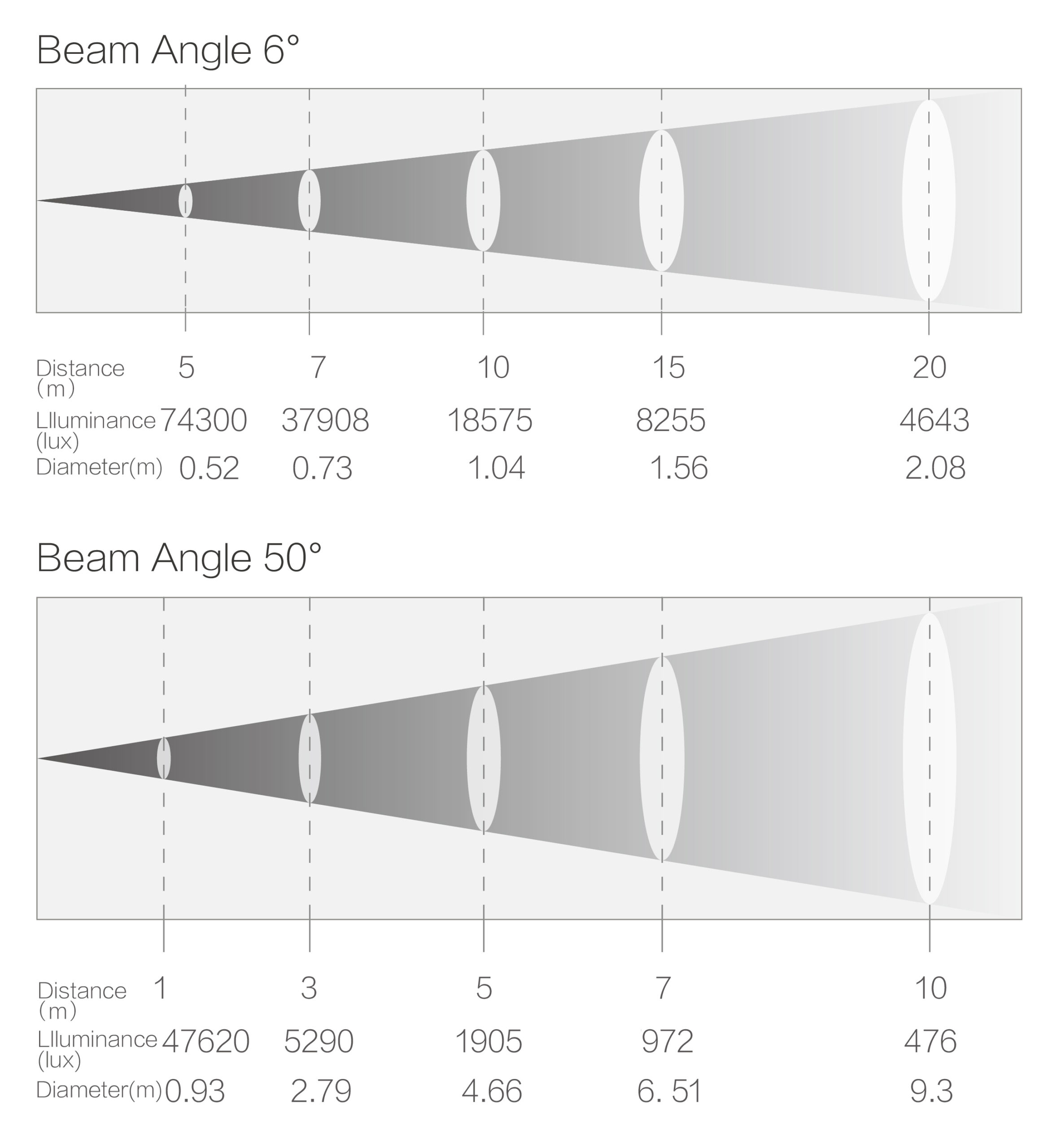

6°- 50°
Beam Angle
24kg
WEIGHT

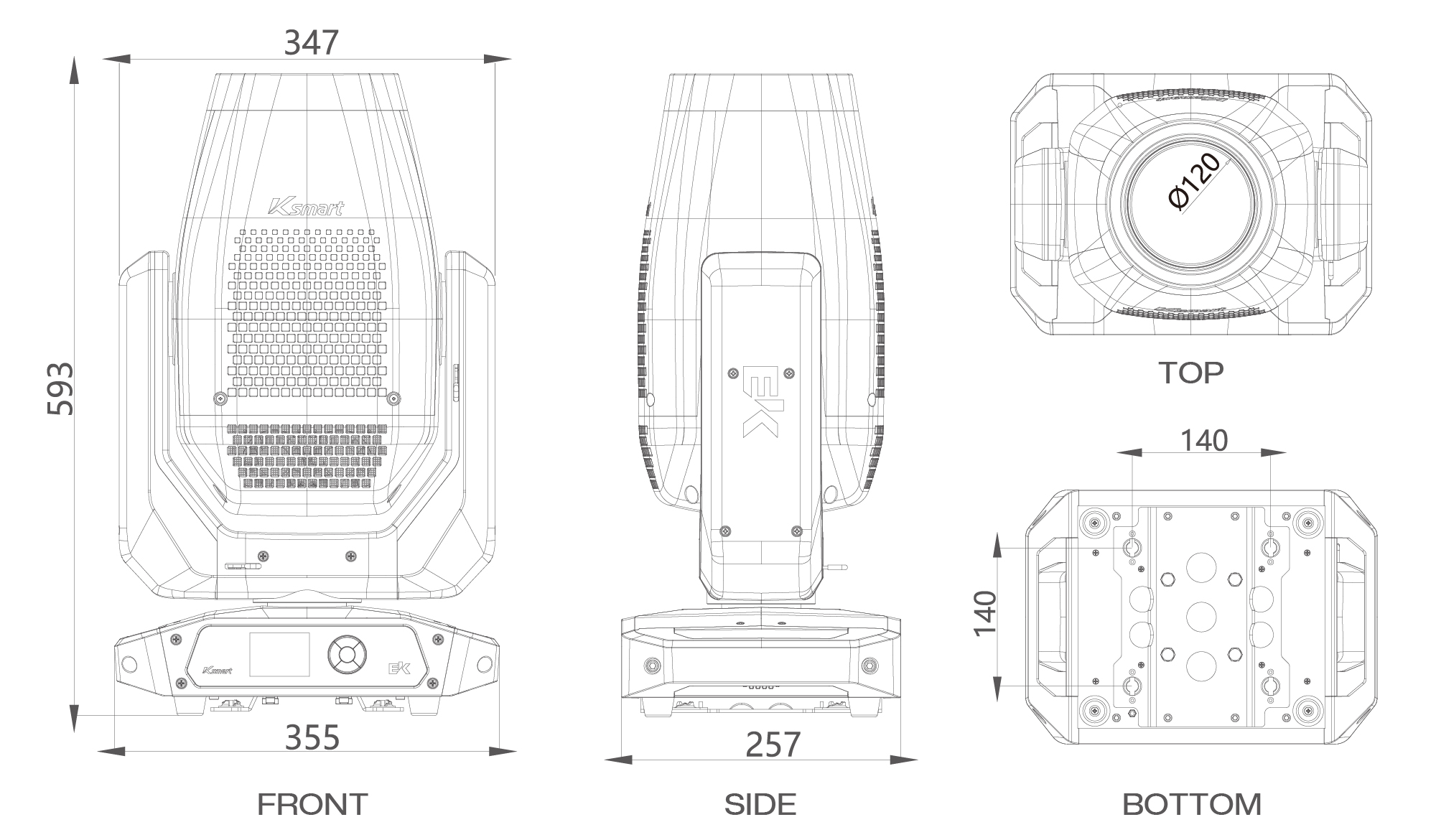

355 x 257 x 593mm
DIMENSION
Exquisite color; endless possibilities
Features
Seamless movement for ultimate control
Bi-directional 4-facet prism with variable speed
Built for professionals
Technical specs
600W 6000K LED engine
20,300 Lu
3200K- 6000K
CRI≥90
20,000 hours
540° (16bit resolution)
270° (16bit resolution)

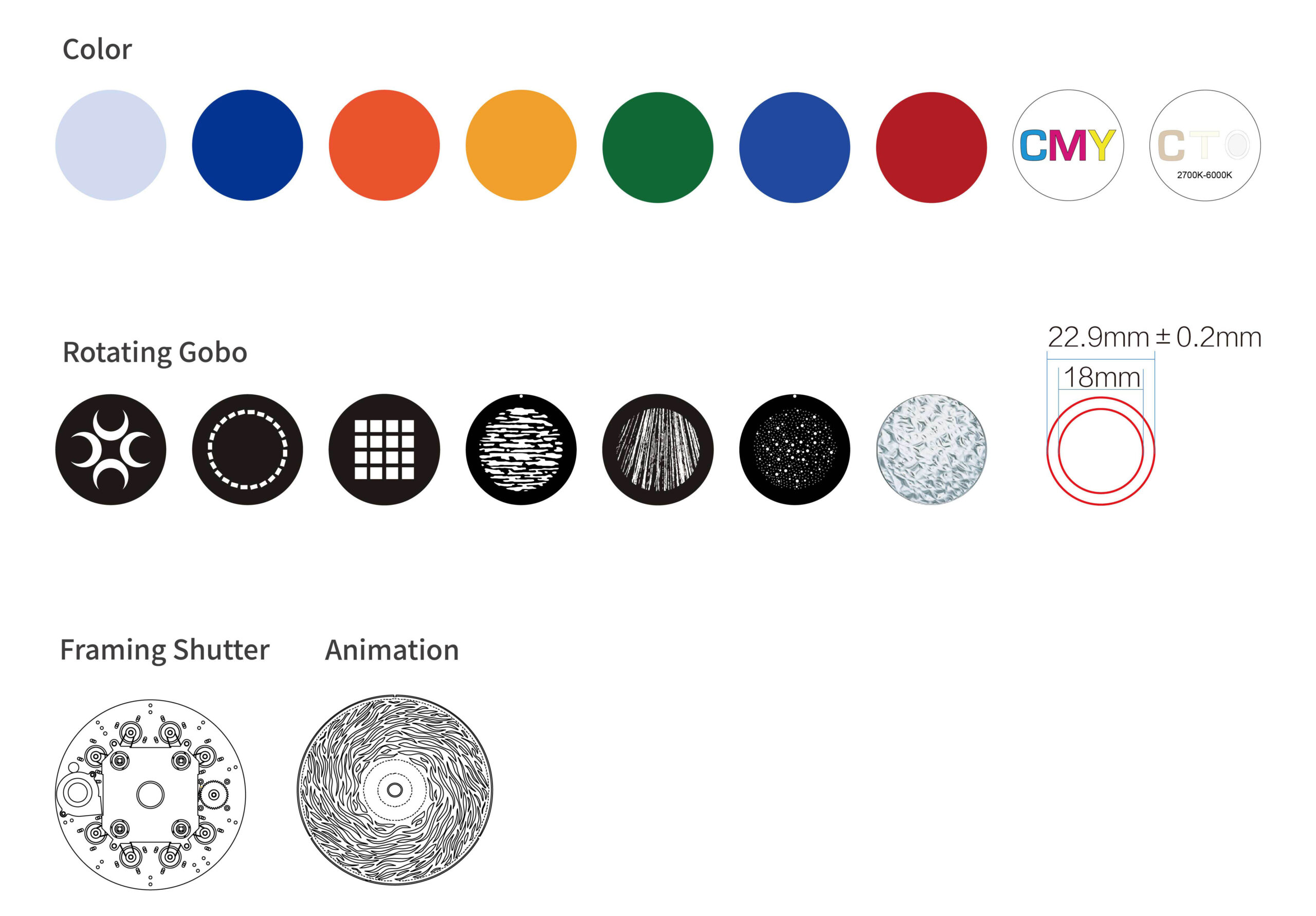

CMY+CTO+7 Color Filters + Open
0 – 30Hz
0-100%, 4 dimming curve modes
Rotating gobo wheel (7+open)
Bi-directional animation wheel with variable speed
±35° each blade individually controllable, 120° system rotation
1° soft edge frost, 0 – 100% variable
Bi-directional 4-facet prism with variable speed
DMX 512/ RDM
3pin(or 5pin) XLR In/Out for DMX
33CH
2.83 inch TFT display
100 – 240V, 50/60 Hz
PowerCon In / Out
linking up to 2 pcs
IP65 3pin(or 5pin) XLR In/Out for DMX
linking up to 32 pcs
730W @230V
782W @120V
0.96@230V,
0.99@120V
-10°C – 45°C
355 x 257 x 593mm
24kg
IP20
Heat pipe cooling system with low noise fan
Aluminium, matte black finish
Sit-flat floor mounting and fly mounting
Power Cable
