BILLY THE KID
Compact built;
Colossal brightness
Lightweight construction; heavyweight beams
Like its legendary American outlaw namesake, Billy the Kid packs serious punch in a compact frame. This lightning-quick mover delivers more than 200000 lux from just 420W, proving that you don’t have to sacrifice size for power. With precise pan/tilt movement and solid beam projection, it’s the fastest, smallest, and most efficient light in its class.
With groundbreaking optics
420W 7800K CW lamp
LIGHT SOURCE

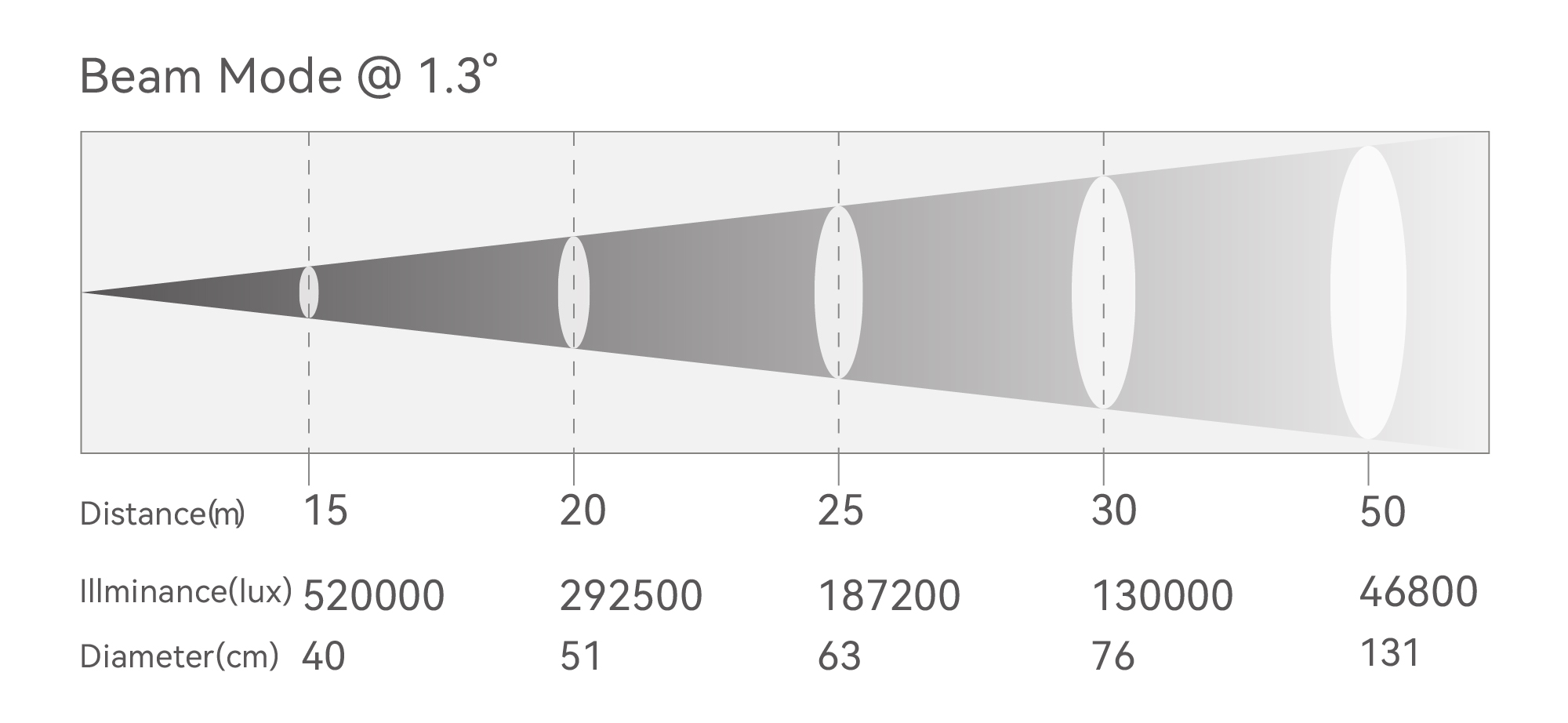

292,500 Lux @ 20m
130,000 Lux @ 30m
LUMENS
6800K
COLOR TEMPERATURE
1.3°
BEAM ANGLE
32.7KG
WEIGHT
Ultra-efficient optical system
- 420W 6700K arc lamp
- Up to a staggering 292500 lux at 20 metres

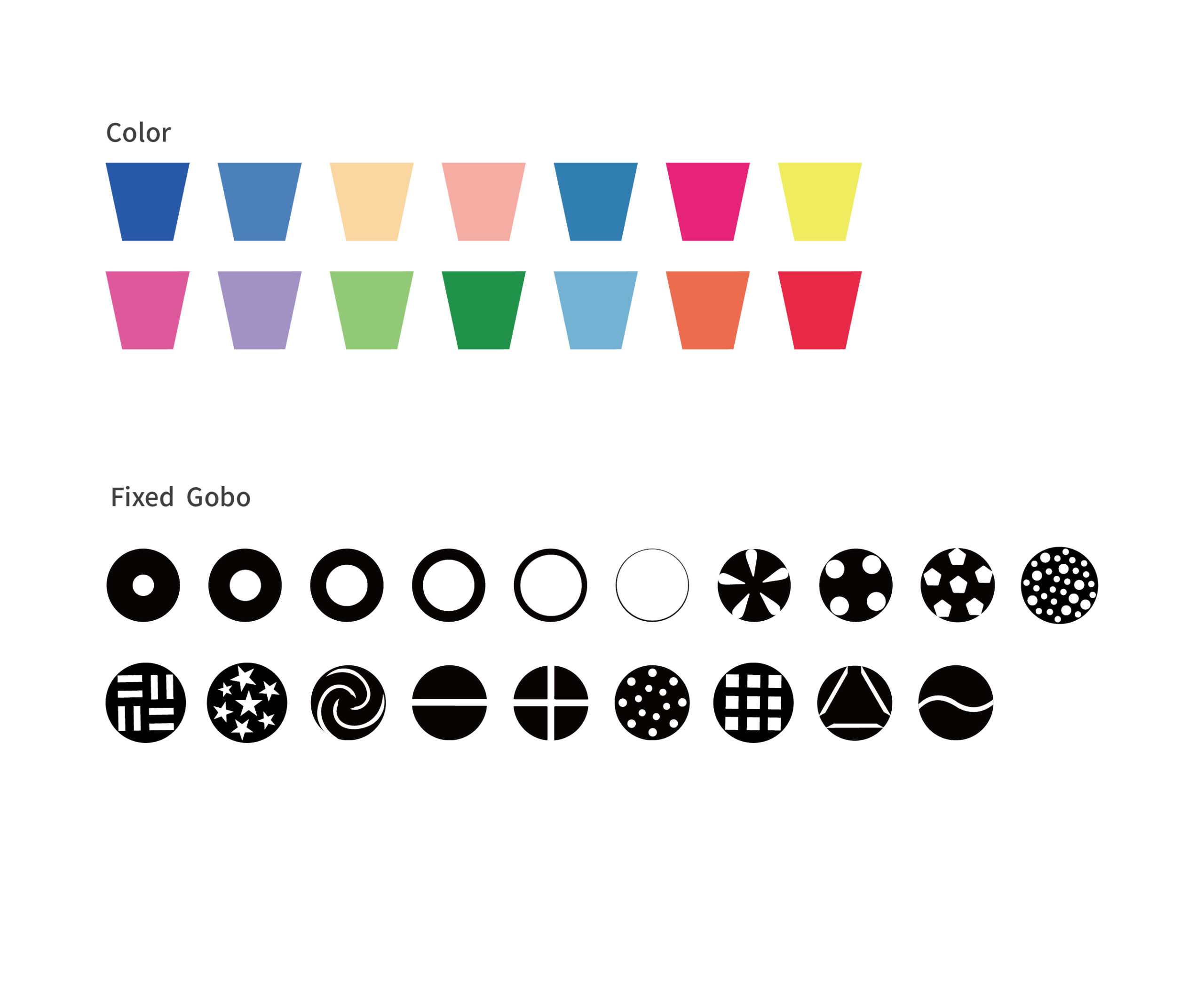

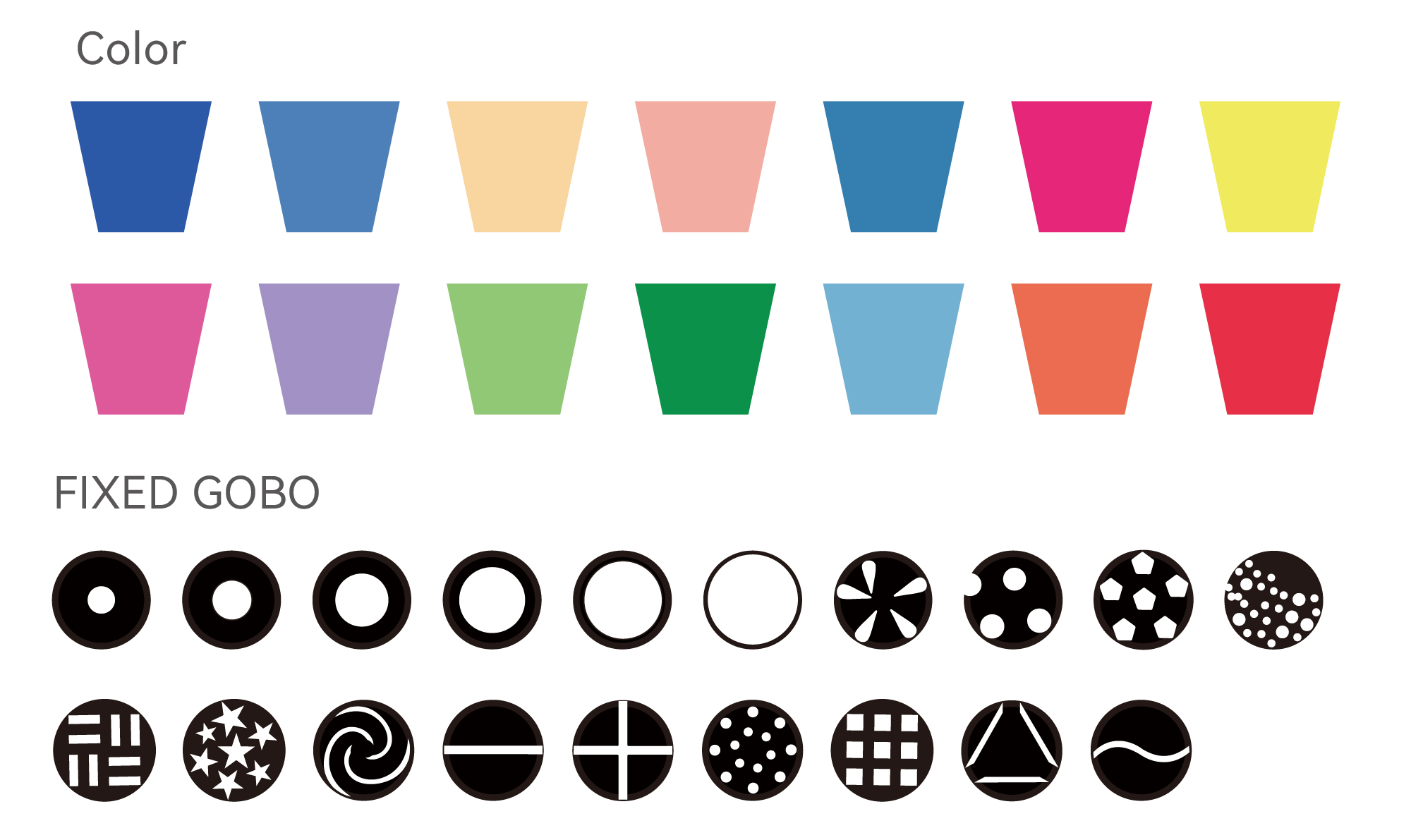

- One fixed gobo wheel: 19 + open
Features
Proven tough in any environment
200mm front lens and 1.3° extremely narrow beam angle
Dual indexable, combinable 8-f and 24-f prism
Rapid, smooth pan/tilt movement with accurate positioning
Rugged die-cast magnesium housing
Weather-resistant IP65 compact tour-grade construction
Built for professionals
- DMX512 control
Technical specs
Photometrics
- Light Source
420W 7800K CW lamp
- Output
292,500 Lux @ 20m, 130,000 Lux @ 30m
- Luminious Flux
NA
- CRI
CRI:90
- Color Temperature
6800K ± 300K
- LED Life
3,000 hours
KEY FEATURES
- PAN
540°
- TILT
270°
- Color System
CMY + Color wheel (14+open)
- Pixel Matrix
NA
- Zoom
Beam angle 1.3°
- Strobe
0 – 9Hz
- Dimming
0 – 100% linear dimming
- Gobo System
One static gobo wheel (19 + open)
- Animation
1 animation wheel
- Framing System
Single blade ±35°, rotatable 180°
- Iris
NA
- Frost
Frost glass
- Prism
8-facet and 24-facet bi-directional prism
CONTROL
- Protocol
DMX512
- Data Connections
3-pin XLR In/Out for DMX
- DMX Channel
19CH
- Display
2.0 inch TFT display
- Frequency
NA
- Built-in Programs
NA
- Pixel Control
NA
POWER
- Mains
200 – 240V，50 – 60Hz
- Power Connections
In + Out power in one
- Maximum Power Connections
Linking up to 1pcs only
- Data Connections
3-pin XLR In/Out for DMX
- Maximum Data Connections
Linking up to 32pcs
- Consumption
Dynamic 640W @ 230V
Static 540W @ 230V
- Power Factor
0.99 @ 230V
- Ambient
-15°C – 45°C
PHYSICAL
- Dimension
263 x 455 x 703mm
- Weight
32.7kg
- IP Rating
IP65
- Cooling
Heat pipe + noiseless fan
- Housing
Die-cast magnesium with matte black finishing
- Installation
NA
