Power Pixel Q50
Brighter. Cooler. So much better.
Power up your pixels
With a remarkable 9-fold increase in brightness compared to its predecessor, the Power Pixel Q50 boasts a highly efficient optical and cooling system. The versatile design incorporates four distinct lens types, offering a wide array of pixel effects to suit diverse creative needs. User-friendly features are at the forefront, including innovative hybrid cables that enhance waterproofing while ensuring easy connectivity.
120W RGBW LED
光源
6,200
光通量
1800K – 8000K
色温
134°
光束角度
146°
泛光角度
3.4kg
产品重量
1000 x 90 x 103.8 mm
产品尺寸
50 pixels, infinite possibilities
- 120W RGBW LEDs

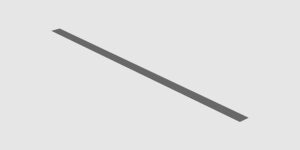

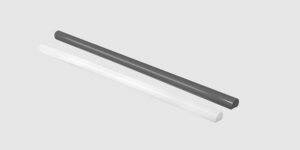

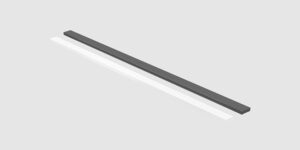

- 4种透镜灯罩可选
- 像素效果丰富灵活多变
- 50X1 矩阵控制
特点
Lock, link, light up
Robust yet simple-to-use proprietary locking system for easy connection between multiple units
IP65 weather-proof construction
像素完美控制
- 灵活控制整体、单点、单段
- DMX512, RDM, Art-Net control
技术规格
光学
- 光源
120W RGB LED
- 光通量
2,954 Lm; with black diffuser: 500 Lm
Peak value: 6,200 Lm
- CRI（显色指数）
>90
- 色温
1800K – 8000K
- 光源使用寿命
20,000H
效果

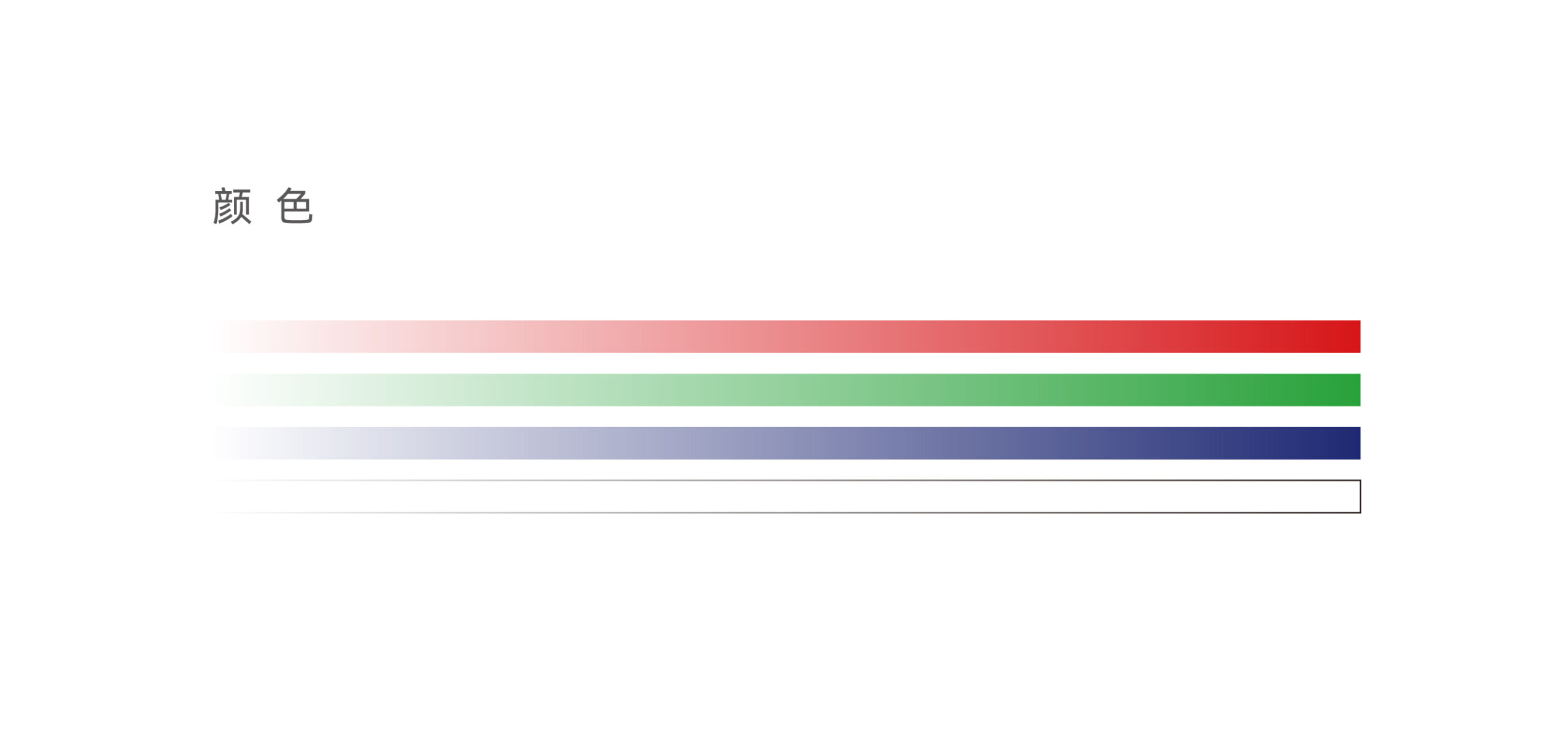

- 颜色系统
RGB
- 缩放

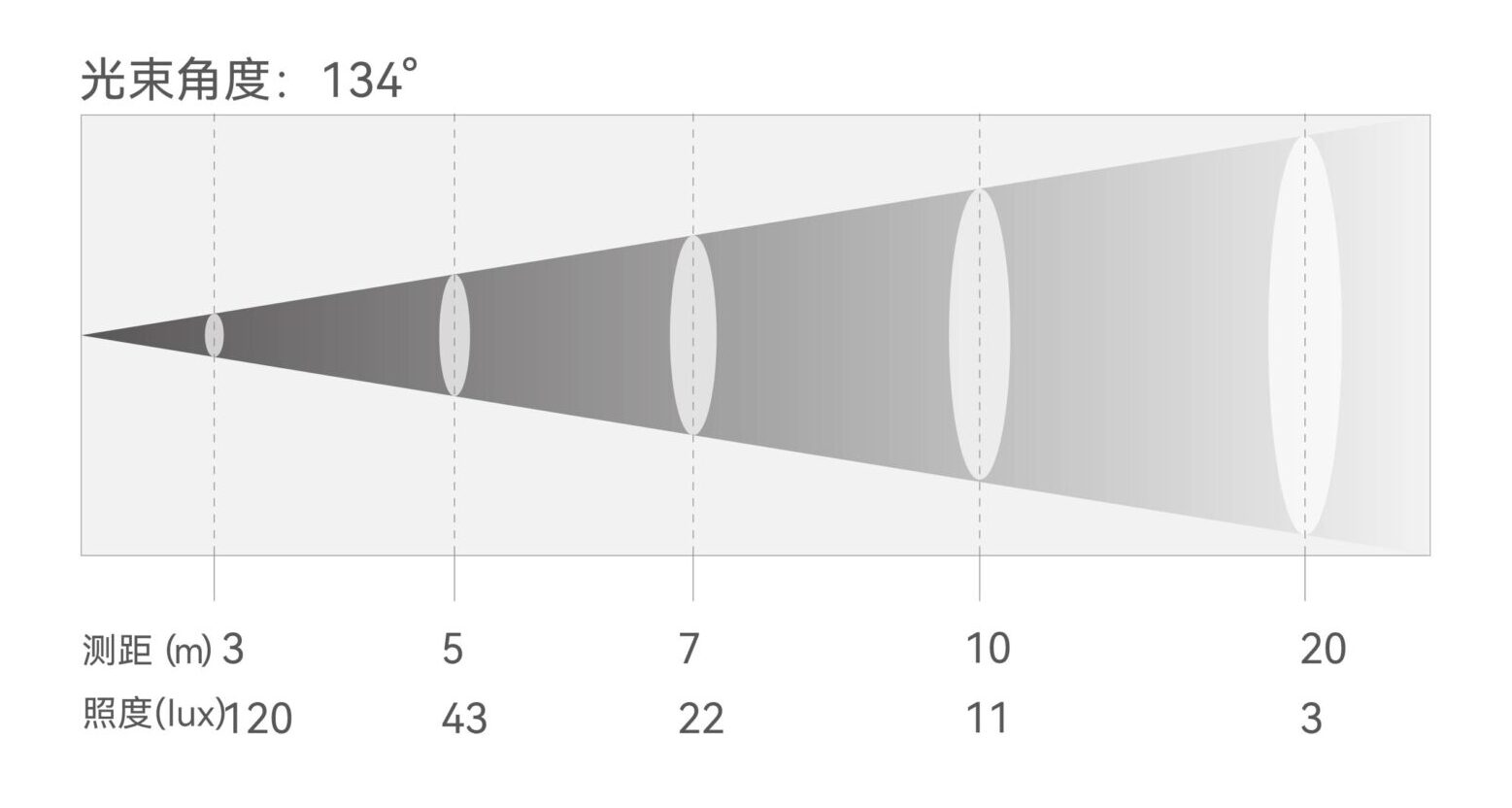

Beam Angle 134°
Field Angle 146°
- 频闪
0 – 30Hz
- 调光
4 dimming curves, 0 – 100% dimming
控制
- 控制方式
DMX512/RDM/Artnet
- DMX通道
4CH /6CH 8CH/8_2CH/10CH/11CH/13CH/14CH
20CH/26CH/40CH/46CH/100CH/106CH/200CH/206CH
- 显示屏
OLED
- 像素点控控制
Integrated + single control
电源
- 输入电压与频率
100 – 240 VAC, 50 – 60 Hz
- 电源连接
IP Power+DMX In/Out
- 最大电源连接数量
Linking up to 20pcs
- 信号连接
DMX512/RDM/Artnet
- 功率
120W@200V
120W@240V
- 功率因素
0.94@240V
0.94@200V
- 操作温度
-15°C – 45°C
物理

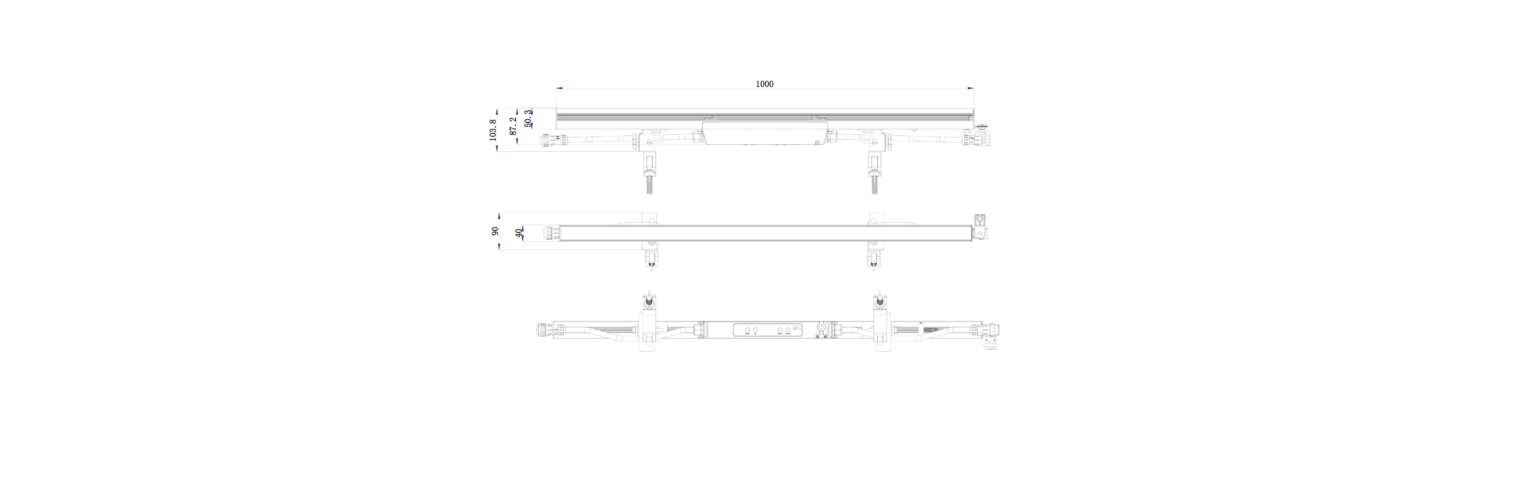

- 产品尺寸
1000 x 90 x 103.8 mm
- 产品重量
3.4kg
- 防护等级
IP65
- 散热系统
自然散热
- 外壳
Aluminium, matte black finish
- 安装方式
Sit-flat floor mounting and fly mounting
