K65 IP
Defy the elements
Compact form; colossal output
The K65 IP delivers extraordinary illumination with its 1000W 6400K LED engine, producing a massive 34,000 lumen output. Its comprehensive effects package includes dual gobo wheels, dual frost filters, 4-facet prism, and ultra-linear dimming for versatile creative applications. All this power and IP66 weather protection is remarkably contained in a compact form factor for ultimate flexibility.
1000W LED engine
LIGHT SOURCE
34,000
LUMENS
3200K- 6400K
COLOR TEMPERATURE
5°- 50°
Beam Angle
38.5kg
WEIGHT
427 x 334 x 757mm
产品尺寸
Best in class optics
- 1000W 6400K LED engine
- Super high 34000 lumen output
- Linear CTO correction of 3200K – 6400K
- Extremely even spot with flawless field consistency
- 40hz high frequency out for flicker-free video
- Razor sharp framing and elegant gobo shaping
Features
Ready for close ups
10x wide zoom range from 5° to 50°
Compact, lightweight with various fan modes for different applications
IP65 weather-proof construction
Built for professionals
- DMX and RDM control
Technical specs

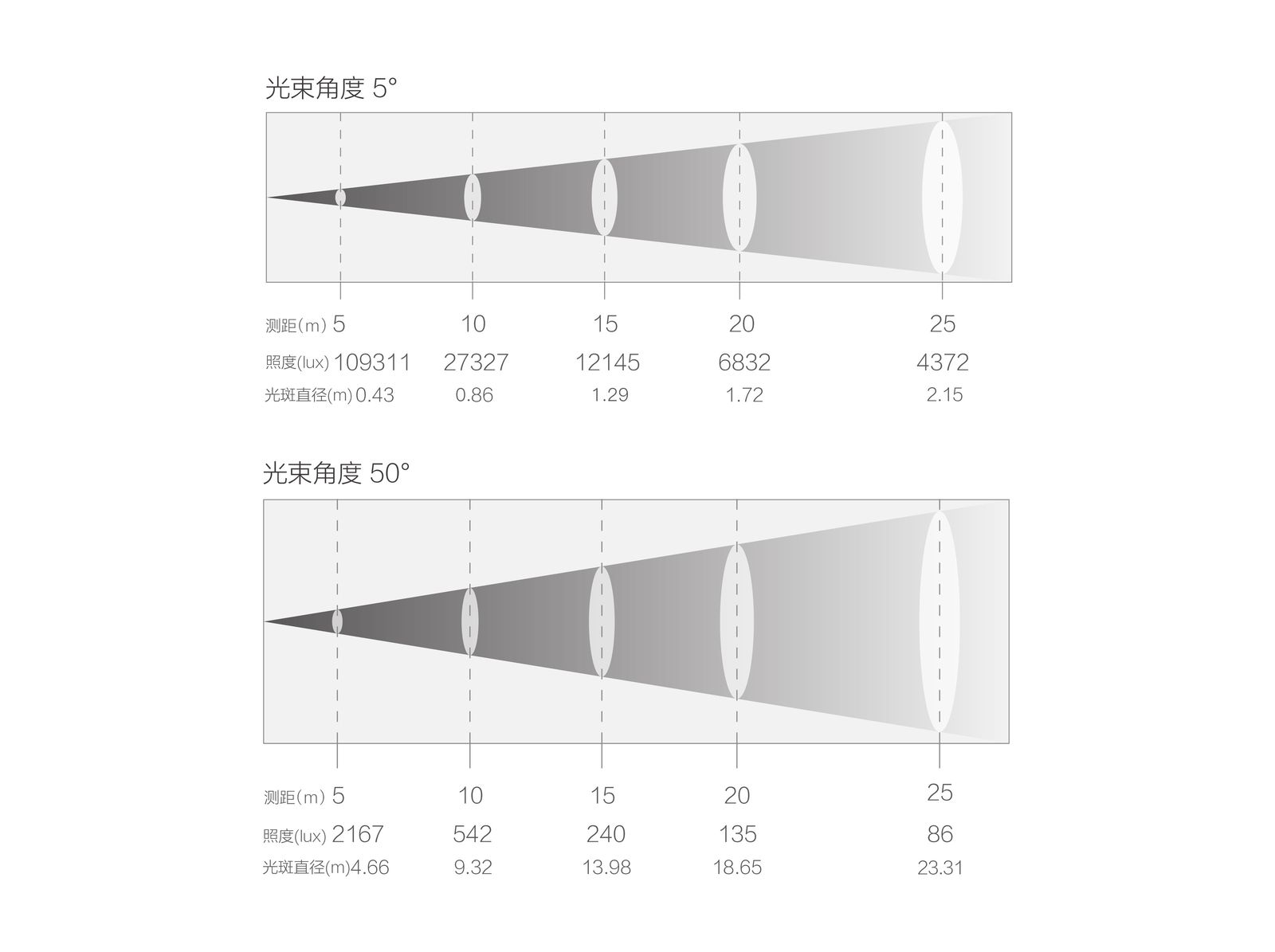

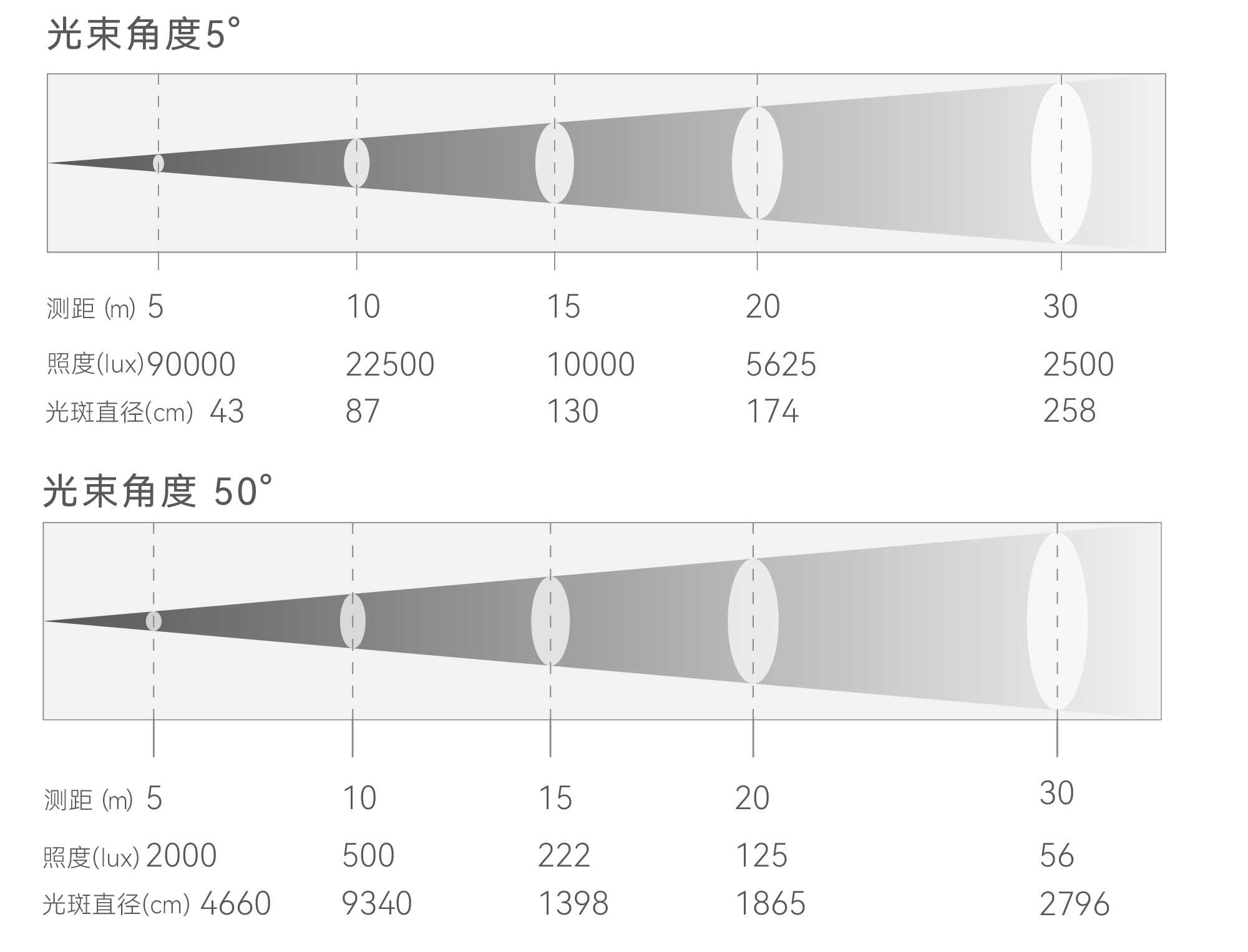

Photometrics
- Light Source
1000W LED engine
- Output
34,000 Lu
- Color Temperature
3200K- 6400K
- LED Life
20,000 hours
KEY FEATURES
- Color System
CW+CMY+CTO+ (6 Color Filters + Open)
- Zoom
Beam Angle 5°- 50°
- Strobe
1 – 30Hz
- Dimming
4 dimming modes
CONTROL
- Protocol
DMX / RDM
- DMX Channel
39CH/41CH
- Display
2.83 inch TFT display
- Pixel Control
Integrated + single control
POWER
- Mains
100 – 240V, 50/60 Hz
- Power Connections
PowerCon True One In
- Maximum Power Connections
linking up to 25 pcs
- Data Connections
3pin(or 5pin) XLR In/Out for DMX
- Consumption
1295W @230V (@full)
- Power Factor
0.96@230V
- Ambient
-10°C – 45°C
PHYSICAL

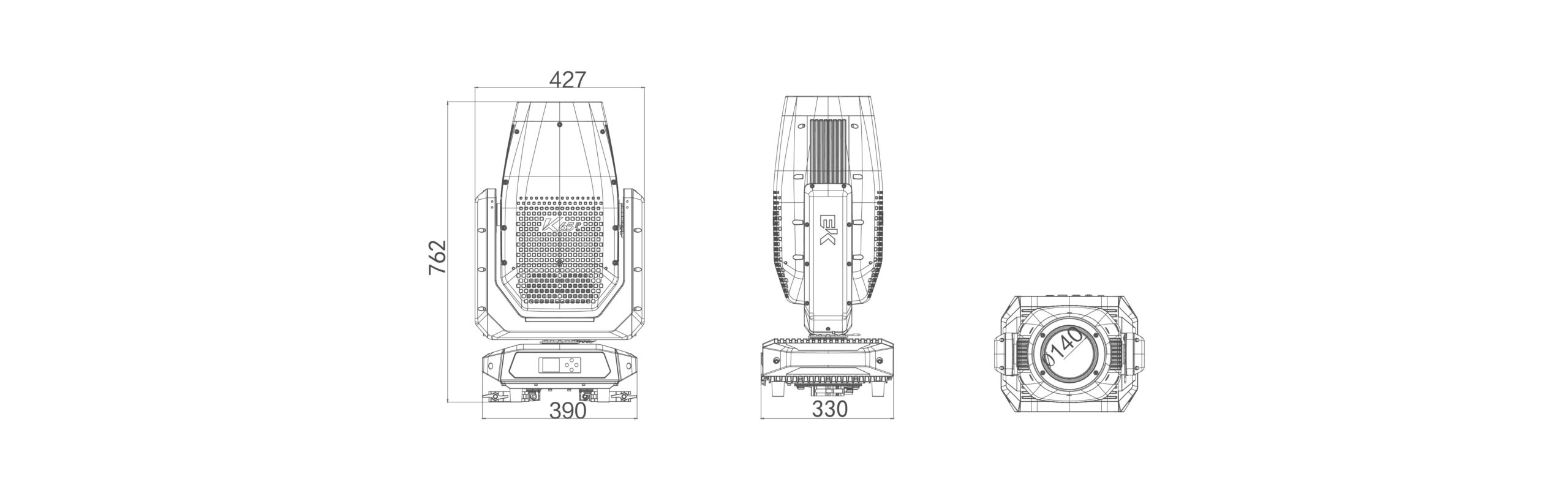

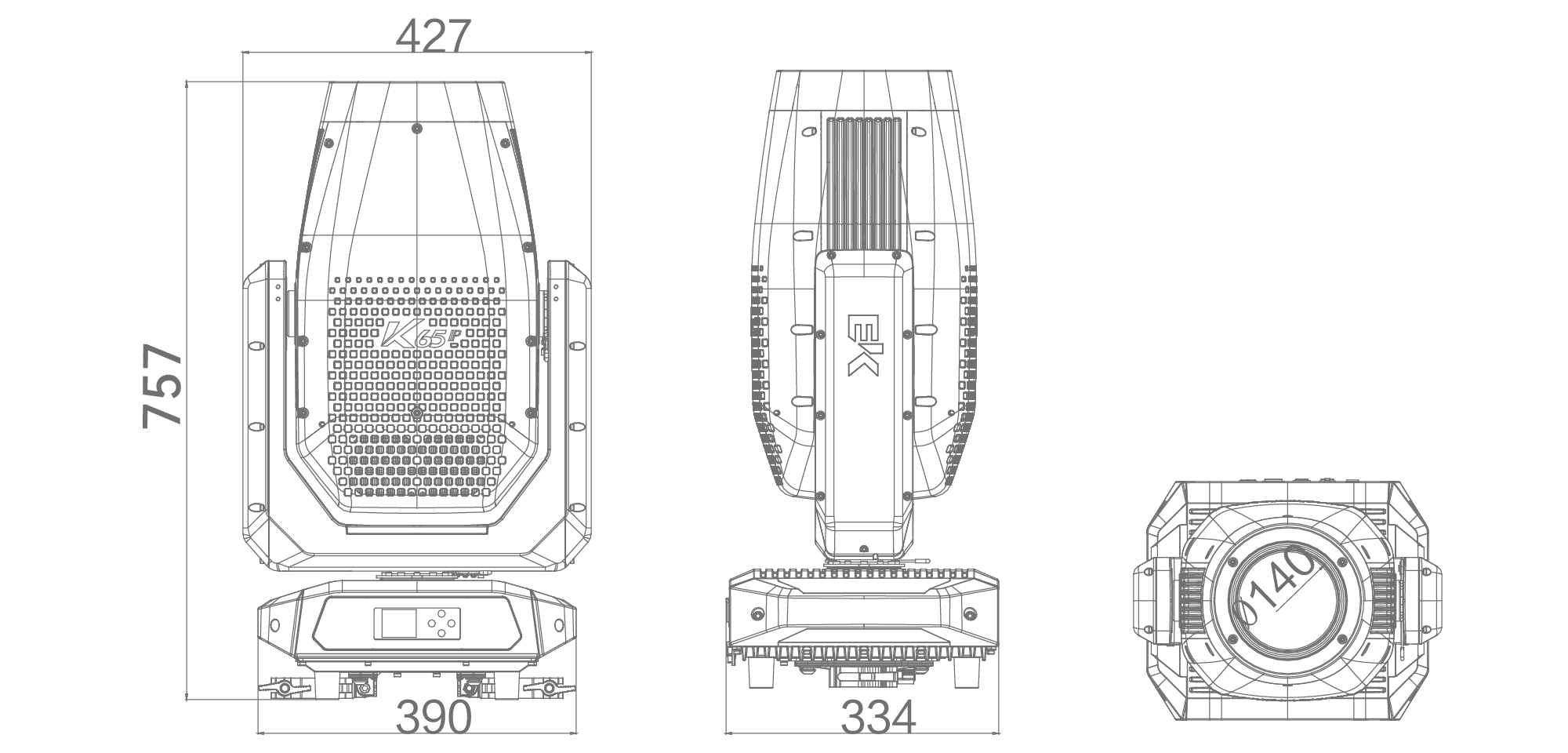

- 产品尺寸
427 x 334 x 757mm
- Weight
38.5kg
- IP Rating
IP65
- Cooling
Heat pipe cooling system with low noise fan
- Housing
Aluminium, matte black finish
- Installation
Sit-flat floor mounting and fly mounting

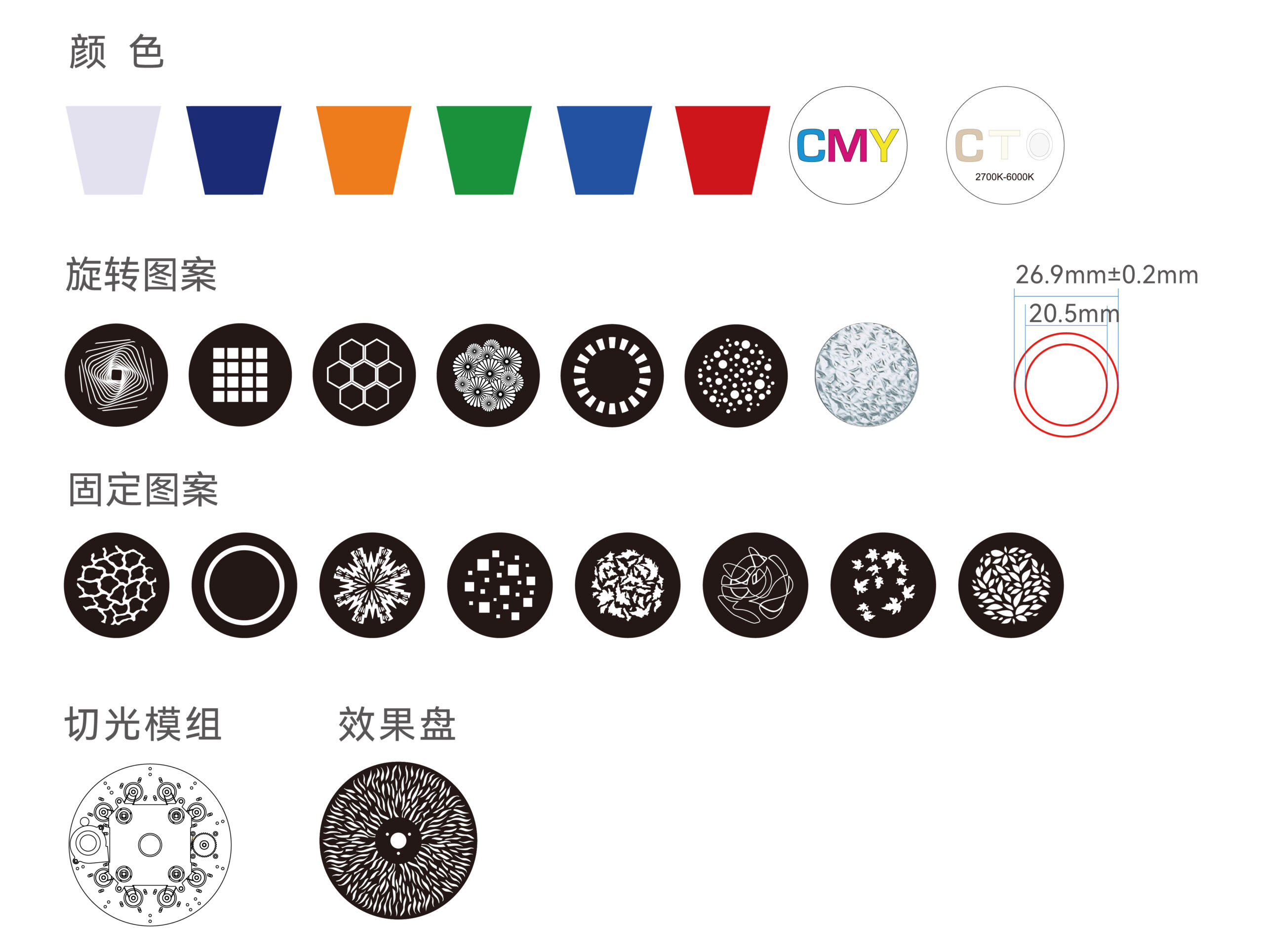

PRODUCT EFFECTS
ACCESSORIES
- Standard
Power Cable
